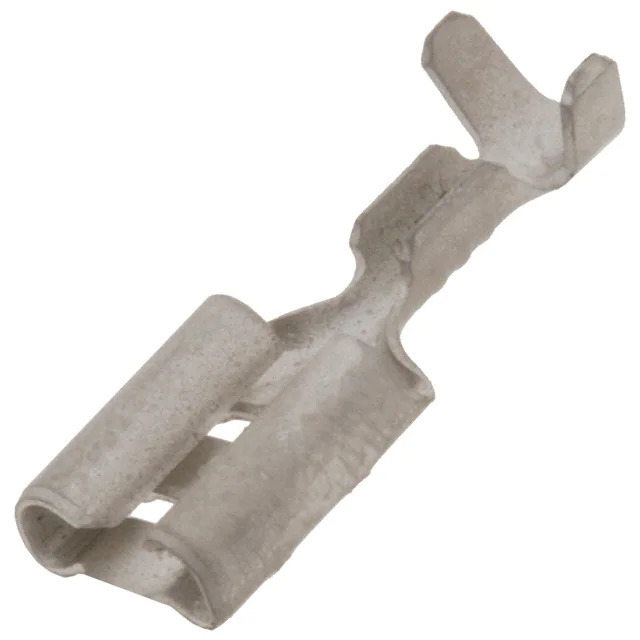

62138-1 TE Connectivity
Same model may have multiple batches, images only for reference.

62138-1

Part No 62138-1
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 20-24AWG 0.187 / 0.187" (4.75mm) Quick Connect Female 20-24 AWG Crimp Connector Non-Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Faston
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.585" (14.86mm)
Termination Crimp
Wire Gauge 20-24 AWG
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.110" (1.52mm ~ 2.79mm)
Base Product Number 62138
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364932-62138-1
Ultra Librarian 3D Model Ultra Librarian 62138-1 CAD Model

Description

The TE Connectivity AMP Connectors Faston Quick Disconnect Connector is a reliable and durable component for various electronic applications.

  • Wire Gauge: 20 to 24 AWG
  • Terminal Type: female
  • Tab Width: 0.187 inches
  • Tab Thickness: 0.020 inches
  • Overall Length: 0.585 inches
  • Contact Material: brass
  • Contact Finish: tin
  • Insulation: non-insulated
  • Insulation Diameter Range: 0.060 to 0.110 inches
  • Mounting: free hanging (in-line)
  • Termination: crimp
