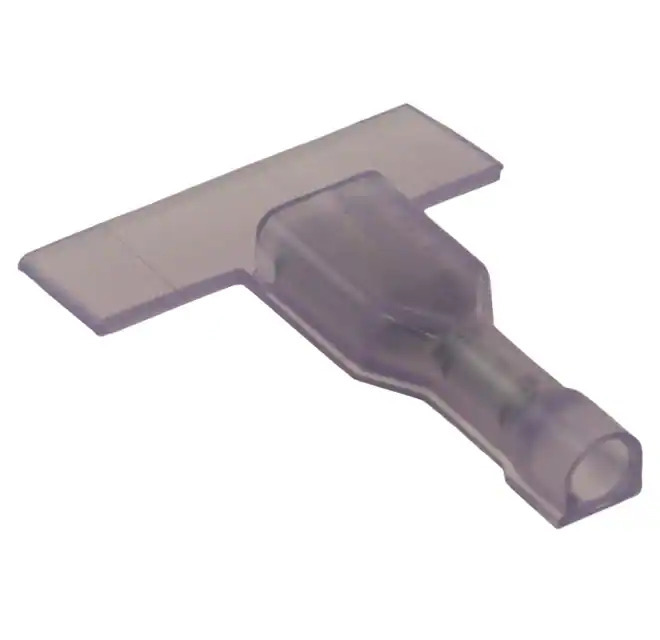

7-520365-2 TE Connectivity
Same model may have multiple batches, images only for reference.

7-520365-2

Part No 7-520365-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 22-26AWG 0.110 / 0.110" (2.79mm), 0.125" (3.18mm) Quick Connect Female 22-26 AWG Crimp Connector Fully Insulated
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr TE Connectivity AMP Connectors
Series Ultra-Fast
Package Tape & Reel (TR)
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.020" (0.51mm)
Tab Length -
Length - Overall 0.735" (18.67mm)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Fully Insulated
Mounting Type Free Hanging (In-Line)
Features -
Color Violet
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" (2.54mm)
Base Product Number 520365
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1365092-7-520365-2
Ultra Librarian 3D Model Ultra Librarian 7-520365-2 CAD Model

Description

The TE Connectivity AMP Connectors Ultra-Fast Quick Disconnect Connector is a versatile component for quick and easy wire connections.

  • Mounting Type: Free-Hanging (In-Line)
  • Wire Gauge: 22 to 26 AWG
  • Terminal Type: Female
  • Insulated: Fully Insulated
  • Contact Finish: Tin
  • Overall Length: 0.735" (18.67mm)
  • Color: Violet
  • Termination: Crimp
