Same model may have multiple batches, images only for reference.

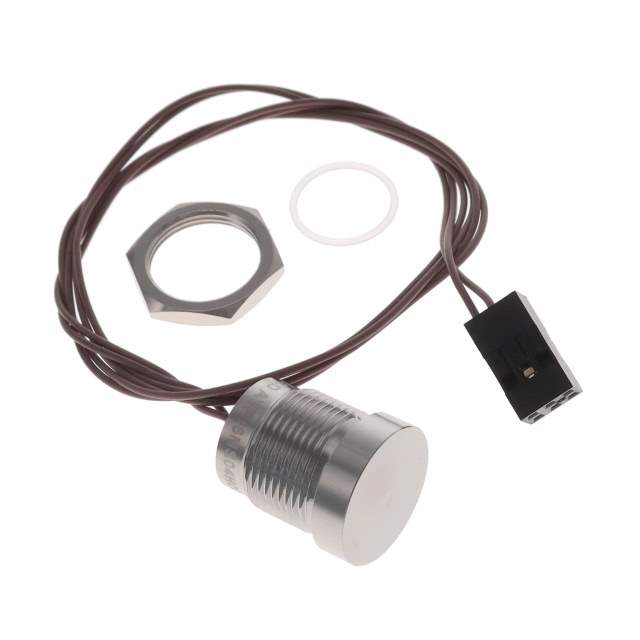

AVP16MS04H000T5B04 Real Image
Same model may have multiple batches, images only for reference.

AVP16MS04H000T5B04

Part No AVP16MS04H000T5B04
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST-NO 1A 24V  /  Pushbutton Switch SPST-NO Piezo, Anti-Vandal Panel Mount, Front
Datasheet
AVP16MS04H000T5B04 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Pushbutton Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series AVP
Package Bulk
Mounting Type Panel Mount, Front
Type Piezo, Anti-Vandal
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 1A (AC/DC)
Voltage Rating - AC 24 V
Voltage Rating - DC 24 V
Actuator Type Round, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Silver
Termination Style Wire Leads with Connector
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Circular - 16.00mm Dia
Temperature Range - Operating -20°C ~ 65°C
Mechanical Life 50,000,000 Cycles
Electrical Life 50,000,000 Cycles
Base Product Number AVP16M
RoHS Status Not applicable
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Other Names 2342838-3,450-3465
Standard Package 1
Win Source Part Number 1047124-AVP16MS04H000T5B04
Ultra Librarian 3D Model Ultra Librarian AVP16MS04H000T5B04 CAD Model

Description

The AVP16MS04H000T5B04 is a TE Connectivity ALCOSWITCH Switches pushbutton switch with piezo and anti-vandal type.

  • Termination Style: wire leads with connector
  • Mounting: panel with front mounting type
  • Panel Cutout: 16.00mm Dia
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: round, button, flush
  • Color: silver
  • Electrical Life: 50,000,000 cycles
  • Mechanical Life: 50,000,000 cycles
  • Voltage Rating: 24V AC/DC
  • Ingress Protection: IP68 dust tight and waterproof
  • Market Status: open market
  • REACH: affected
  • HTSUS: 8536.50.9031
  • Manufacturer: TE Connectivity ALCOSWITCH Switches
