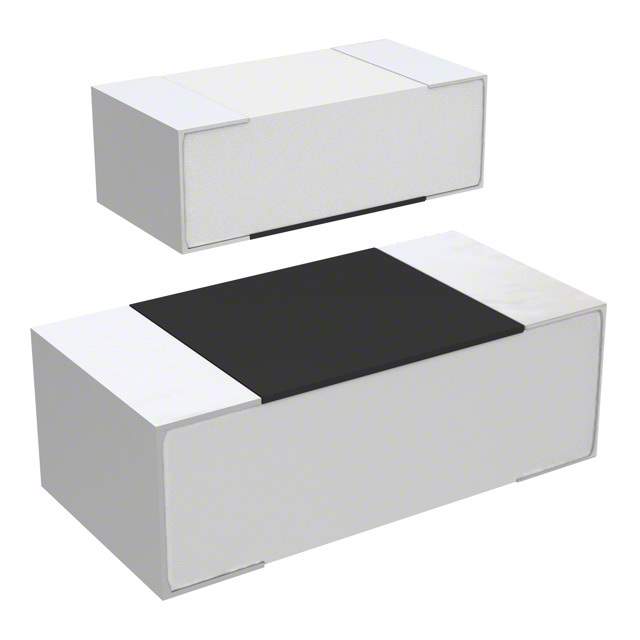

CRG0603F47R Real Image
Same model may have multiple batches, images only for reference.

CRG0603F47R

Part No CRG0603F47R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 47 OHM 1% 1/10W 0603  /  47 Ohms ±1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRG, Neohm
Package Tape & Reel (TR)
Resistance 47 Ohms
Tolerance ±1%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number CRG0603
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1622954-1-ND,1622954-1
Standard Package 10,000
Win Source Part Number 1131687-CRG0603F47R
Ultra Librarian 3D Model Ultra Librarian CRG0603F47R CAD Model

Description

The Win Source Part Number 1131687-CRG0603F47R is a chip resistor - surface mount from the CRG, Neohm series. It has a tolerance of ±1% and a temperature coefficient of ±200ppm/°C.

  • Series: CRG, Neohm
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power: 0.1W, 1/10W
  • Composition: Thick Film
  • Resistance: 47 Ohms
  • Package/Case: 0603 (1608 Metric)
  • Temperature Range: -55°C to 155°C
  • Packaging: Tape & Reel (TR)
