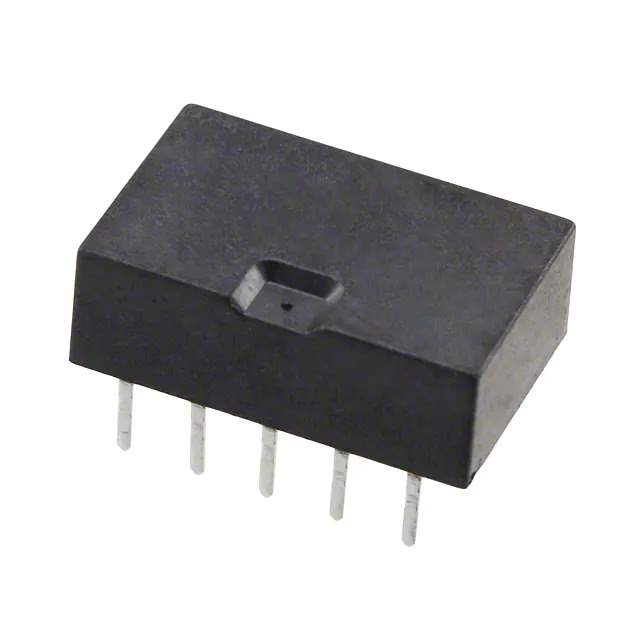

D3012 Real Image
Same model may have multiple batches, images only for reference.

D3012

Part No D3012
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 24VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr TE Connectivity
Series FP2, AXICOM
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 8.3 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 4 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 2.88 kOhms
Base Product Number D301
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 916655-D3012
Ultra Librarian 3D Model Ultra Librarian D3012 CAD Model

Description

The FP2 series signal relay by AXICOM is a versatile component designed for telecom applications.

  • Contact Form: DPDT (2 Form C)
  • Contact Material: Palladium (Pd), Ruthenium (Ru), and Gold (Au)
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Mounting Type: Through-Hole
  • Switching Voltage: 250VAC
  • Switching Voltage Max: 220VDC
  • Operating Temperature: -40°C to 85°C
