Same model may have multiple batches, images only for reference.

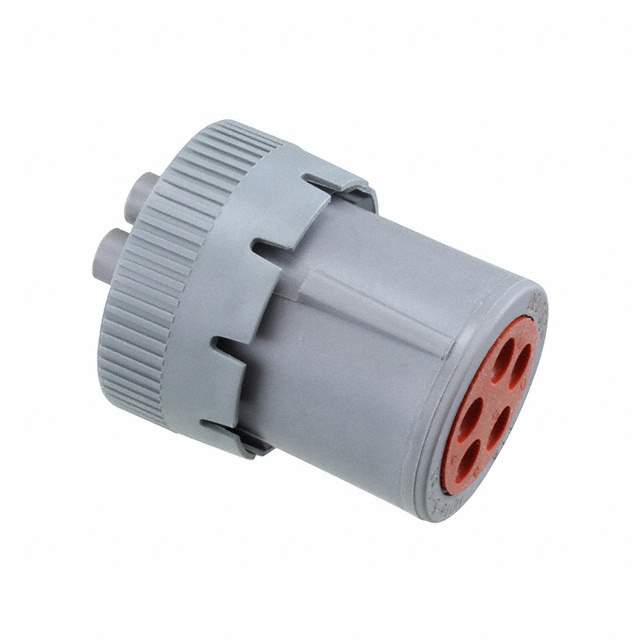

HD16-5-16S Real Image
Same model may have multiple batches, images only for reference.

HD16-5-16S

Part No HD16-5-16S
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN PLUG HSG FMALE 5POS INLINE / Conn Circular PIN 5 POS ST Cable Mount 5 Terminal 1 Port Automotive Package
Datasheet
HD16-5-16S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity Deutsch Connectors
Series HD10
Packaging Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 5
Shell Size - Insert 5-16
Contact Type Crimp
Contact Size 16
Mounting Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Plastic
Housing Color Gray
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Coupling Nut
Shielding Unshielded
Note Contacts Not Included
Coupling Nut Diameter 1.218" (30.94mm)
Coupling Nut Material, Plating Plastic
Insert Material Plastic
Contact Shape Circular
Operating Temperature Range -40°C ~ 125°C
Win Source Part Number 772261-HD16-5-16S
Popularity Medium
Supply and Demand Status Limited
Family Name HD16
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China, Mexico, Republic of Korea, United Kingdom, United States of America
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HD16-5-16S CAD Model

Description

The 772261-HD16-5-16S is a plug housing connector manufactured by TE Connectivity Deutsch Connectors.

  • Locking Mechanism: Bayonet Lock, Coupling Nut
  • Socket Type: Female
  • Shell Size - Insert: 5-16
  • Contact Size: 16
  • Ingress Protection: IP68 (Dust Tight and Waterproof)
  • Housing Color: Gray
  • Polarization: Keyed
  • Operating Temperature Range: -40°C ~ 125°C
  • Material Flammability Rating: UL94 V-1
  • Mounting Type: Free Hanging (In-Line)
  • Coupling Nut Diameter: 1.218" (30.94mm)
