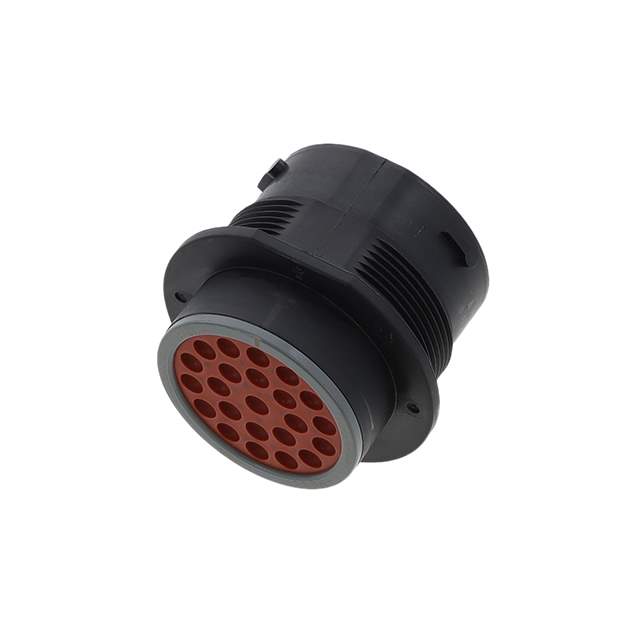

HDP24-24-23PE Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-23PE

Part No HDP24-24-23PE
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 23POS PNL MT / 23 Position Circular Connector Receptacle Housing Panel Mount Dust Cap
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 23
Shell Size - Insert 24-23
Contact Type Crimp
Contact Size 16
Mounting Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number -HDP24-24-23PE-SI,1734-1203
Standard Package 30
Win Source Part Number 1334559-HDP24-24-23PE
Ultra Librarian 3D Model Ultra Librarian HDP24-24-23PE CAD Model

Description

The TE Connectivity Deutsch Connectors 1334559-HDP24-24-23PE is a receptacle housing connector with 23 positions.

  • Designed For: Male Pins
  • Features: Dust Cap
  • Termination: Crimp
  • Fastening Type: Bayonet Lock
  • Ingress Protection: IP68, making it dust tight and waterproof
  • Shielded: Unshielded
  • Material Flammability Rating: UL94 V-1
  • Mounting: Panel Mount
  • Mounting Feature: Bulkhead - Front Side Nut
  • Operating Temperature: -55°C ~ 125°C
  • ROHS3 Compliant: Yes
