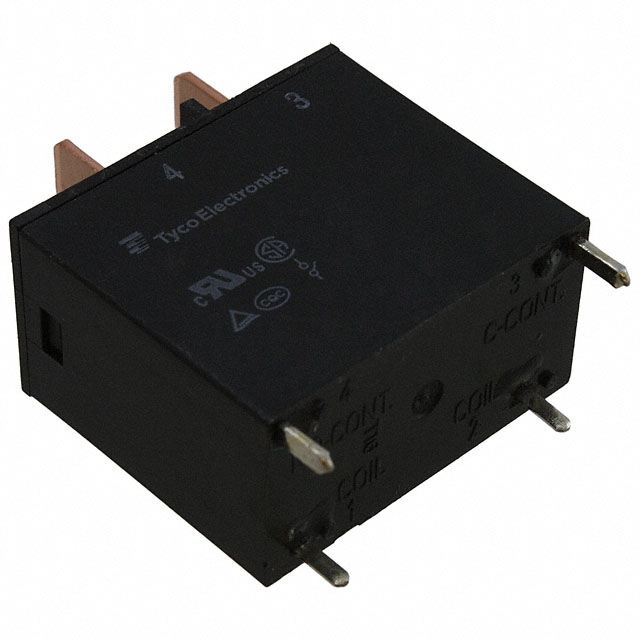

PCF-112D2M,000 TE Connectivity
Same model may have multiple batches, images only for reference.

PCF-112D2M,000

Part No PCF-112D2M,000
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 25A 12V
Datasheet
PCF-112D2M,000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 75mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 25A
Switching Voltage 277VAC, 24VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 20ms
Release Time 10ms
Mounting Through Hole
Termination Style PC Pin, Quick Connect - 0.250" (6.3mm)
Coil Power 900 mW
Coil Resistance 160 Ohms
Temperature Range - Operating -30°C to 55°C
Win Source Part Number 143460-PCF-112D2M,000
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCF-112D2M,000 CAD Model

Description

The 143460-PCF-112D2M,000 is a general-purpose SPST-NO (1 Form A) relay from TE Connectivity Potter & Brumfield Relays.

  • Mounting Style: Through-hole
  • Coil Voltage: 12VDC
  • Contact Rating: 25A
  • Switching Voltage: 277VAC and 24VDC @ max
  • Turn-On Voltage: 9VDC
  • Turn-Off Voltage: 0.6VDC
  • Operate Time: 20ms
  • Release Time: 10ms
  • Coil Resistance: 160 Ohms
  • Coil Current: 75mA
  • Coil Power: 900mW
  • Temperature Range: -30°C to 55°C
