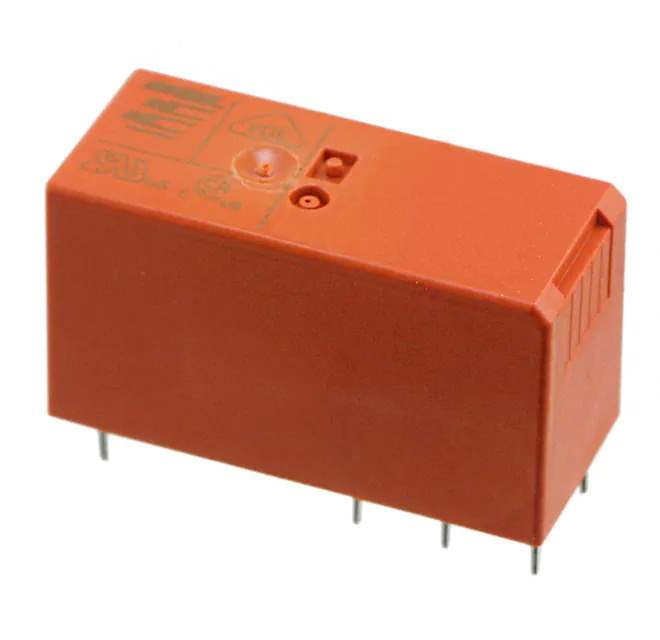

RT314F05 Real Image RT314F05 Real Image
Same model may have multiple batches, images only for reference.
RT314F05 Real Image RT314F05 Real Image
RT314F05 Real Image RT314F05 Real Image
Same model may have multiple batches, images only for reference.

RT314F05

Part No RT314F05
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT1 Bistable, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 119 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 3.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 42 Ohms
Base Product Number RT314
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0075
Win Source Part Number 661397-RT314F05
Ultra Librarian 3D Model Ultra Librarian RT314F05 CAD Model

Description

The RT314F05 is a power relay from TE Connectivity's RT1 Bistable series.

  • Relay Type: General-purpose
  • Contact Form: SPDT (1 Form C)
  • Coil Voltage: 5VDC
  • Coil Resistance: 42 Ohms
  • Contact Rating: 16 A
  • Switching Voltage: 400VAC
  • Design: Latching, dual coil
  • Protection Rating: Sealed, flux protection
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 85°C
