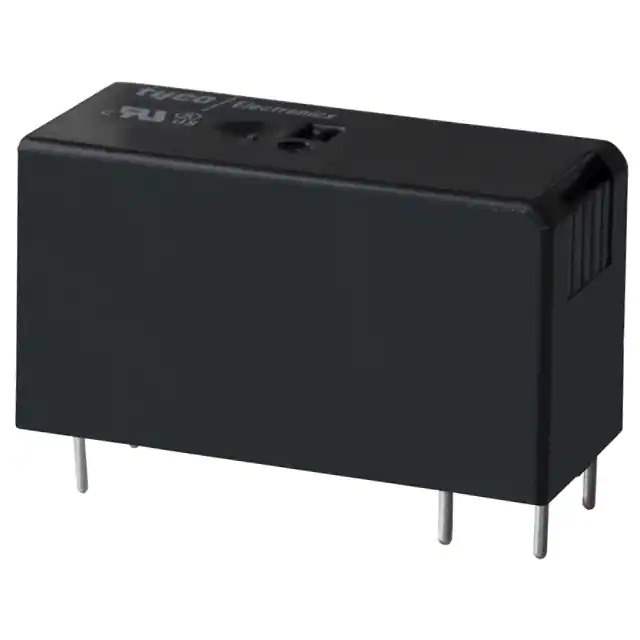

RTE24615 Real Image
Same model may have multiple batches, images only for reference.

RTE24615

Part No RTE24615
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 115V / General Purpose Relay DPDT (2 Form C) 115VAC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RT2, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 115VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 86.3 VAC
Must Release Voltage 17.3 VAC
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 8.1 kOhms
Base Product Number RTE24
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.49.0050
Win Source Part Number 661735-RTE24615
Ultra Librarian 3D Model Ultra Librarian RTE24615 CAD Model

Description

The RT2 series power relay from SCHRACK is a versatile and reliable component for your electronic projects.

  • Contact Form: DPDT (2 Form C)
  • Switching Voltage: 400VAC (maximum)
  • Coil Voltage: 115VAC
  • Contact Rating: 8A
  • Protection: fully sealed
  • Temperature Range: -40°C to 70°C
  • Mounting: through-hole mounting
  • Package: tube
  • Market Status: active product
  • Manufacturer: TE Connectivity
