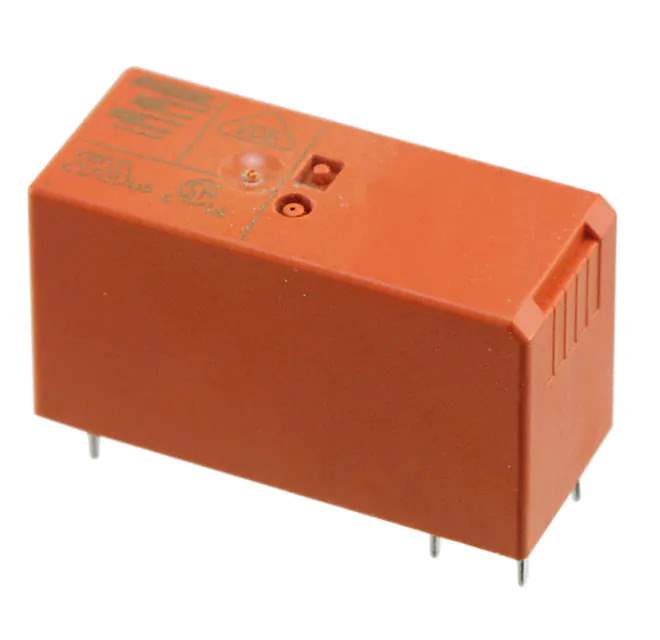

The RT1 series power relay from TE Connectivity is a versatile and reliable component for various applications.

• Model: RTS3T024
• Designed for: Inrush current applications
• Contact Form: SPST-NO (1 Form A)
• Contact Material: Silver tin oxide (AgSnO) and tungsten (W)
• Ensuring: Excellent conductivity and resistance to arcing
• Coil Voltage: 24VDC
• Coil Resistance: 1.44 kOhms
• Coil Current: 16.7 mA
• Contact Rating: 16 A
• Handling: High current loads up to 400VAC
• Response Time: 10 ms
• Release Time: 5 ms
• Relay is: Sealed with flux protection
• Suitable for: Use in challenging environments
• Mounting: Through-hole
• Temperature Range: -40°C to 85°C
• With: Reliable performance and specialized design
• Ideal choice for: Applications requiring inrush current handling
