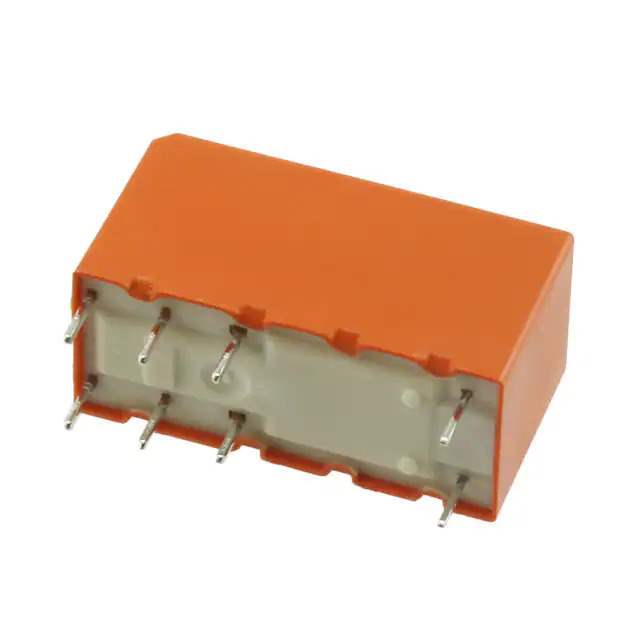

RZ03-1C4-D012 Real Image
Same model may have multiple batches, images only for reference.

RZ03-1C4-D012

Part No RZ03-1C4-D012
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity
Series RZ, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 400VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class F
Must Operate Voltage 8.4 VDC
Must Release Voltage 1.2 VDC
Operate Time 8 ms
Release Time 6 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number RZ03
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 662134-RZ03-1C4-D012
Ultra Librarian 3D Model Ultra Librarian RZ03-1C4-D012 CAD Model

Description

The RZ03-1C4-D012 is a power relay from the RZ series by SCHRACK.

  • Series: RZ
  • Contact Form: SPDT (1 Form C)
  • Contact Rating: 16A
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Switching Voltage: Up to 400VAC
  • Release Time: 6ms
  • Application: General-Purpose
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Coil Insulation: Class F
