Same model may have multiple batches, images only for reference.

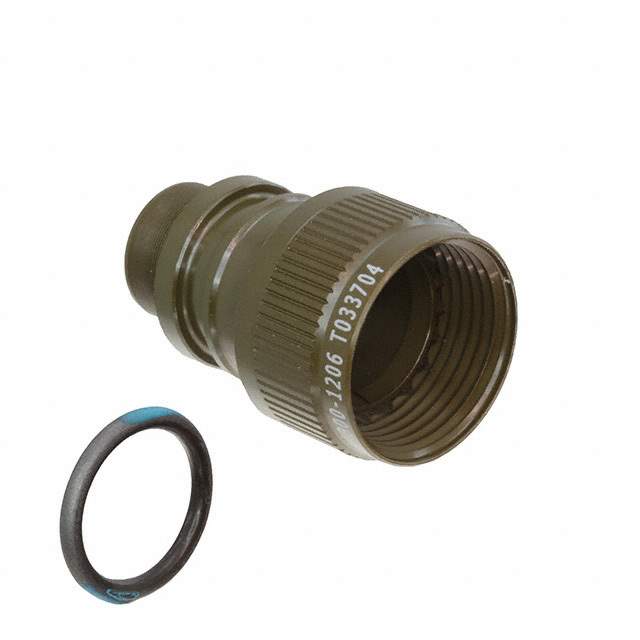

TXR54AB00-1206AI Real Image
Same model may have multiple batches, images only for reference.

TXR54AB00-1206AI

Part No TXR54AB00-1206AI
Manufacturer TE Connectivity
Catalog Circular Connectors
Description CONN BACKSHELL ADPT SZ7-12S OLIV  /  Olive Drab Connector Backshell, Heat Shrink Adapter 3/4-20 UNEF 7, 12, 12S
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series TXR
Package Bulk
Type Backshell, Heat Shrink Adapter
Diameter - Outside 0.854" (21.70mm)
Shell Size - Insert 7, 12, 12S
Thread Size 3/4-20 UNEF
Cable Exit 180°
Material Aluminum Alloy
Plating Cadmium
Shielding Shielded
Color Olive Drab
Features Tinel Lock
Includes 3 pcs - 1 Backshell, 1 Braid, 1 Tinel Ring
For Use With/Related Products MIL-C-5015G MS3400 Series, MIL-C-81703 Series III, MIL-DTL-26482 Series II, MIL-DTL-83723 Series I, III
Base Product Number TXR54AB00
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names A141554,TXR54AB00-1206AI-ND,150211-000
Standard Package 1
Win Source Part Number 1038959-TXR54AB00-1206AI
Ultra Librarian 3D Model Ultra Librarian TXR54AB00-1206AI CAD Model

Description

The TE Connectivity Aerospace, Defense and Marine TXR Backshell is a high-quality component that is designed to provide reliable performance.

  • Type: Backshell, Heat Shrink Adapter
  • Feature: Tinel Lock
  • Shielded: Yes
  • Shell Material: Aluminum Alloy
  • Plating: Cadmium
  • Includes: 3 pcs - 1 Backshell, 1 Braid, 1 Tinel Ring
  • Cable Exit: 180°
  • Thread Size: 3/4-20 UNEF
