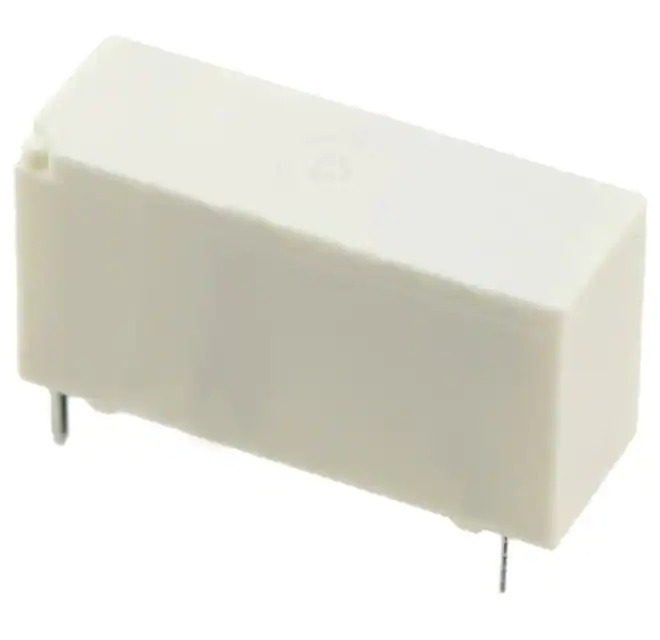

V23061A1004A302 TE Connectivity
Same model may have multiple batches, images only for reference.

V23061A1004A302

Part No V23061A1004A302
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 9V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8 A
Switching Voltage 400VAC - Max
Coil Current 24.7 mA
Coil Type Non Latching
Features -
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class A
Must Operate Voltage 6.1 VDC
Must Release Voltage 0.9 VDC
Operate Time 10 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 364 Ohms
Base Product Number V23061
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1380246-V23061A1004A302
Ultra Librarian 3D Model Ultra Librarian V23061A1004A302 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays V23061A1004A302 is a power relay that can handle over 2 Amps of current.

  • Operating Temperature: -40°C to 85°C
  • Coil Voltage: 9VDC
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating (Current): 8 A
  • Switching Voltage (Maximum): 400VAC

The TE Connectivity Potter & Brumfield Relays V23061A1004A302 relay is a general-purpose relay that is suitable for various applications.
