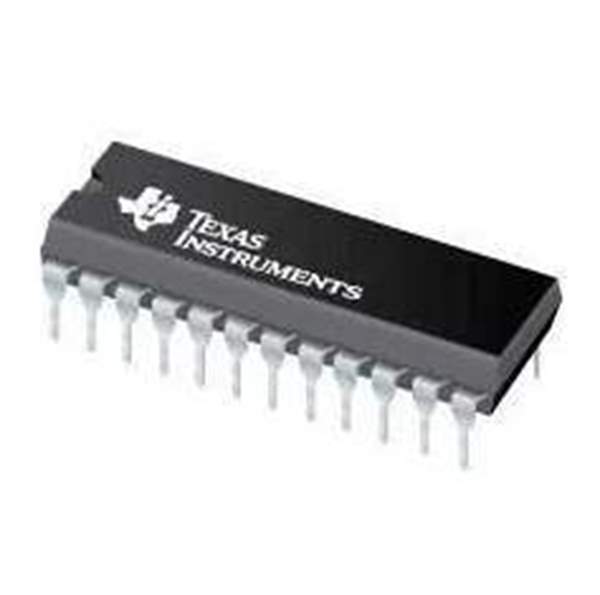

5962-9232501MXA Texas Instruments
Same model may have multiple batches, images only for reference.

5962-9232501MXA

Part No 5962-9232501MXA
Manufacturer Texas Instruments
Catalog PMIC - Motor Drivers, Controllers
Description Motor / Motion / Ignition Controllers & Drivers Not available Through Mouser
Datasheet
5962-9232501MXA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Motor / Motion / Ignition Controllers & Drivers
Manufacturer Texas Instruments
Operating Supply Current 13 mA
Operating Temperature (Min) - 55 C
Operating Temperature (Max) + 125 C
Packaging  Tube
Feature Dual Channel
Product Type Motor / Motion / Ignition Controllers & Drivers
Operating Supply Voltage (Min) 12 V
Operating Supply Voltage (Max) 55 V
Ultra Librarian 3D Model Ultra Librarian 5962-9232501MXA CAD Model

Description

The LMD18200 is a 2.4A H-Bridge designed for motion control applications. The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure. ideal for driving DC and stepper motors; the LMD18200 accommodates peak output currents up to 6A. An innovative circuit which facilitates low-loss sensing of the output current has been implemented.
