The ADS1278EVM-PDK from Texas Instruments is a comprehensive evaluation platform designed for the ADS1278, a high-performance, 24-bit analog-to-digital converter (ADC). The kit enables designers and engineers to thoroughly assess the capabilities and features of this state-of-the-art ADC, which is ideal for a wide range of applications including industrial process control, seismic data acquisition, and high-end audio equipment.

Key Features

• High-Resolution ADC: The ADS1278 is an octal, 24-bit, 144kSPS ADC with an exceptional combination of wide dynamic range, low noise, and high sampling rates, providing superior performance for precision measurement applications.
• Flexible Input Ranges: The device supports various input ranges, making it suitable for different signal amplitudes, and ensuring accurate data conversion across a spectrum of sources.
• Integrated Features: The ADS1278 incorporates features such as an onboard, low-noise gain amplifier, a precision voltage reference, and an oscillator to simplify system design and minimize external components.
• Modular EVM Design: The ADS1278EVM-PDK includes a modular evaluation module (EVM) that interfaces with the included USB-based motherboard (the MMB0), facilitating easy connection to a PC for data analysis and evaluation.

Software and Support

The kit comes with TI's easy-to-use evaluation software, which provides a graphical user interface (GUI) for data capture, analysis, and real-time visualization. The software is fully compatible with Windows operating systems and offers extensive configuration options to experiment with different settings and parameters.

Applications

The ADS1278EVM-PDK is well-suited for a variety of high-accuracy applications, including:

• Industrial data acquisition systems
• Medical instrumentation
• Test and measurement equipment
• Geophysical exploration equipment
• Audiophile-grade audio systems

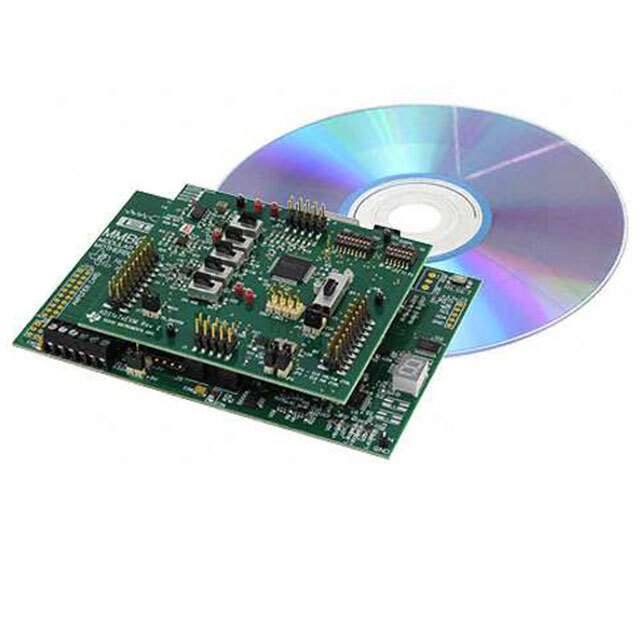

What's Included

The PDK includes the ADS1278EVM, the MMB0 motherboard, and all necessary software and documentation to get started with evaluation and development. It provides a robust platform for testing the ADS1278 ADC, simplifying the process of integrating the component into future designs and products.
