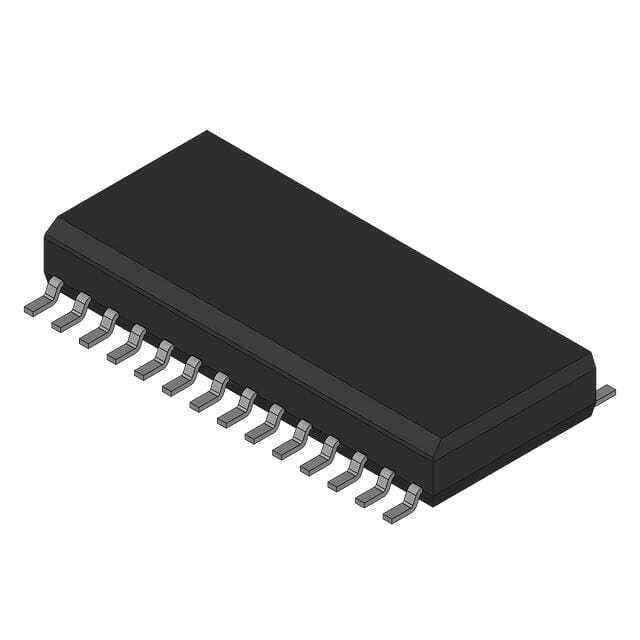

ADS7805UB/1K

Part No ADS7805UB/1K
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 16BIT SAR 28SOIC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Estimated Pruduction Lead Time 34 Weeks
Features 16 Bit Analog to Digital Converter 1 Input 1 SAR 28-SOIC
Manufacturer Texas Instruments
Package Reel - TR
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount
Package 28-SOIC (0.295", 7.50mm Width)
Case / Package 28-SOIC
Family Name ADS7805
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ADS7805UB/1K-NDR, ADS7805UB/1KE4, ADS7805UB/1KE4-ND
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 910881-ADS7805UB/1K
Ultra Librarian 3D Model Ultra Librarian ADS7805UB/1K CAD Model

Description

The ADS7805UB/1K is a high-precision, 16-bit analog-to-digital converter (ADC) designed by Texas Instruments, known for its reliability and performance in critical data acquisition systems. This product is an ideal choice for applications requiring high-resolution measurements, such as medical instrumentation, industrial process control, and scientific analysis.

Key Features

  • High Resolution: 16-bit resolution provides detailed and accurate analog signal conversion, ensuring precise data for analysis.
  • Sampling Rate: With a maximum sampling rate of 100 kHz, the ADS7805UB/1K can handle high-speed signal processing without sacrificing accuracy.
  • Input Voltage Range: The device supports a versatile ±10V input range, accommodating a wide array of sensor outputs and signal levels.
  • Interface: An easy-to-use parallel interface allows for quick integration with microcontrollers and digital systems.
  • Low Power Consumption: Designed for efficiency, it operates with a low power consumption, making it suitable for battery-powered or energy-sensitive applications.
  • Built-in Reference: A precision internal reference voltage ensures stable performance and removes the need for external components.

Applications

The ADS7805UB/1K is versatile and can be used in various high-precision applications, including:

  • Medical Imaging Systems
  • Test and Measurement Equipment
  • Industrial Process Controls
  • Data Acquisition Systems
  • Scientific Research Instruments

Quality and Reliability

As a product from Texas Instruments, the ADS7805UB/1K is built with the highest standards of quality and reliability. It is available in a 28-SOIC package, ensuring robustness and ease of mounting on various types of printed circuit boards. For engineers and designers looking for a dependable ADC solution, the ADS7805UB/1K stands out as an exceptional choice.

Note: Before integrating the ADS7805UB/1K into your designs, please consult the full datasheet and application notes provided by Texas Instruments to ensure proper usage and compatibility with your system.
