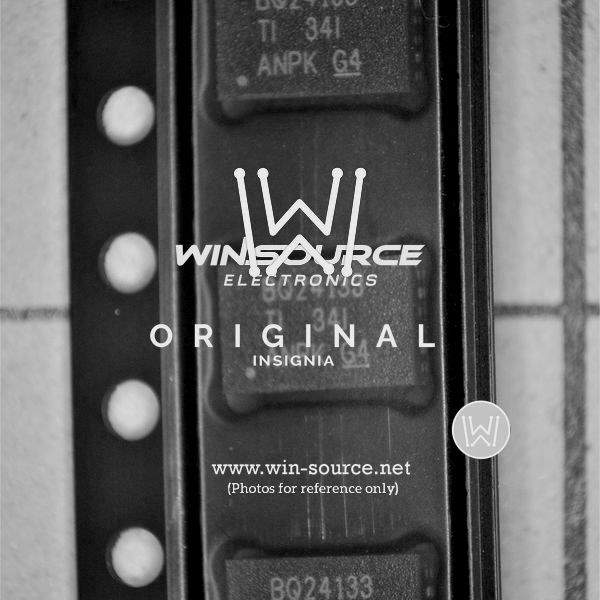

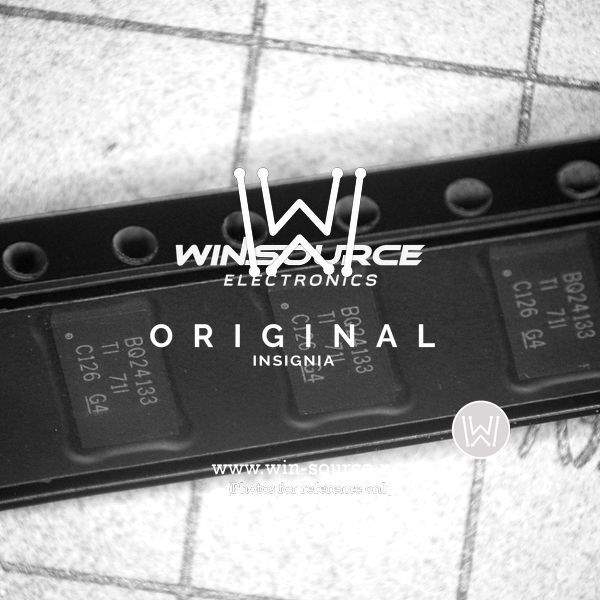

BQ24133RGYR Real Image BQ24133RGYR real image2642 BQ24133RGYR real image2643
Same model may have multiple batches, images only for reference.
BQ24133RGYR Real Image BQ24133RGYR real image2642 BQ24133RGYR real image2643
BQ24133RGYR Real Image BQ24133RGYR real image2642 BQ24133RGYR real image2643
Same model may have multiple batches, images only for reference.

BQ24133RGYR

Part No BQ24133RGYR
Manufacturer Texas Instruments
Catalog PMIC - Battery Chargers
Description IC BATT CHARGE LI-ION/POL 24VQFN
Datasheet
BQ24133RGYR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Battery Chemistry Lithium-Ion/Polymer
Number of Cells 1 to 3
Current - Charging Constant - Programmable
Programmable Features Current
Fault Protection Over Current, Over Temperature, Over Voltage
Charge Current - Max 2.5A
Battery Pack Voltage 4.2V
Maximum Supply Voltage 17V
Temperature Range - Operating -40°C to 85°C (TA)

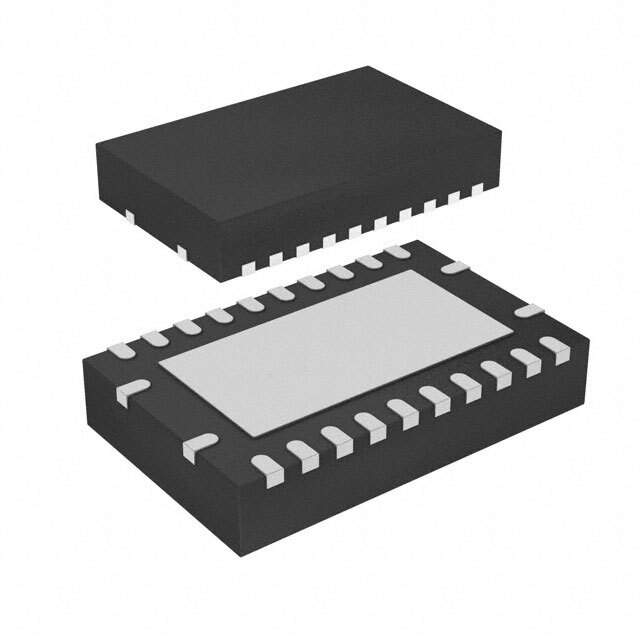

Case / Package 24-VQFN (5.5x3.5)
Win Source Part Number 011926-BQ24133RGYR
Family Name bq24133
Introduction Date January 01, 2011
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BQ24133RGYR CAD Model

Description

BQ24133RGYR Product Description

The BQ24133RGYR is a highly efficient, synchronous switch-mode battery charge controller for single cells. It supports 20-V input voltage, 4-A output current, and 3-MHz operating frequency, which makes it perfect for portable applications requiring high efficiency and a compact footprint.

  • Battery packs
  • Tablets
  • Power banks

Features and Benefits

  • Supports 4.5V to 17V input voltage
  • Programmable Battery Current Regulation
  • Highly efficient with up to 96% efficiency
  • Designed for optimized thermal performance
