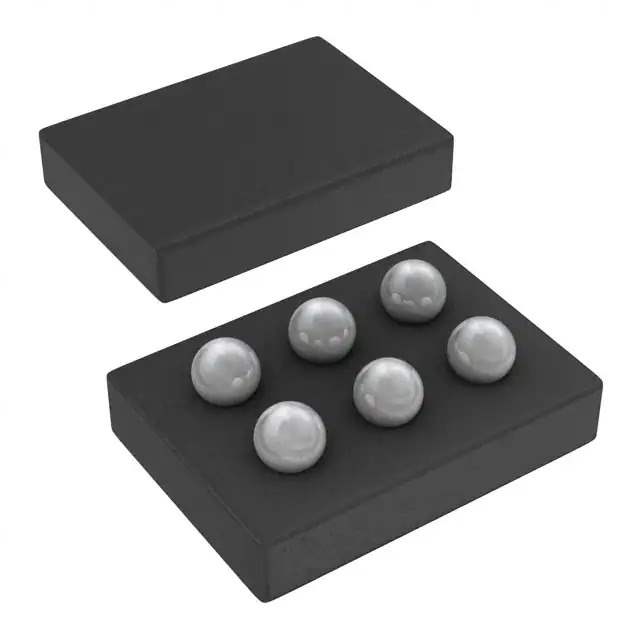

The CSD13306W is a state-of-the-art N-Channel NexFET™ power MOSFET from Texas Instruments, designed to deliver high efficiency and performance for a wide range of power management applications. This device is a testament to Texas Instruments' commitment to providing innovative solutions that meet the evolving needs of the electronics industry.

Key Features

• Low On-Resistance: The CSD13306W boasts an exceptionally low drain-to-source on-resistance (R_DS(on)) of just 59 mΩ at V_GS = 10V, which translates to reduced conduction losses and improved overall efficiency in applications.
• High Continuous Drain Current: With a continuous drain current (I_D) of 12A, this MOSFET can handle high current loads, making it suitable for demanding power conversion tasks.
• Advanced Thermal Performance: The power MOSFET features an advanced package design that enhances thermal performance, ensuring reliability even under high power operation or elevated temperatures.
• Fast Switching Speed: Engineered for rapid switching, the CSD13306W minimizes transition losses and is ideal for high-frequency applications, such as switch-mode power supplies and DC-DC converters.
• Low Threshold Voltage: A low gate threshold voltage (V_GS(th)) allows for operation at lower gate voltages, which can be beneficial in low-voltage applications.

Applications

The versatile nature of the CSD13306W makes it suitable for a diverse range of applications, including:

• Power supply circuits
• DC-DC converters
• Motor control systems
• Battery management systems
• Load switches
• Hot-swap circuits

Quality and Reliability

Texas Instruments is renowned for its rigorous testing and quality control processes. The CSD13306W is no exception, undergoing stringent checks to ensure it meets the high standards expected by industry professionals. Customers can trust this power MOSFET to deliver consistent performance and durability.

For technical specifications, application notes, and support resources, users can visit the Texas Instruments website or contact their support team for further assistance with the CSD13306W.
