The Texas Instruments CSD16327Q3T is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high performance in power conversion and management applications. This compact yet powerful component is ideal for a wide range of products, from consumer electronics to industrial systems, offering efficiency, reliability, and power density improvements.

Key Features

• Ultra-Low On-Resistance: With an R_DS(on) of just 5.8 mΩ, the CSD16327Q3T ensures minimal conduction losses, making it suitable for high-efficiency power supply designs.

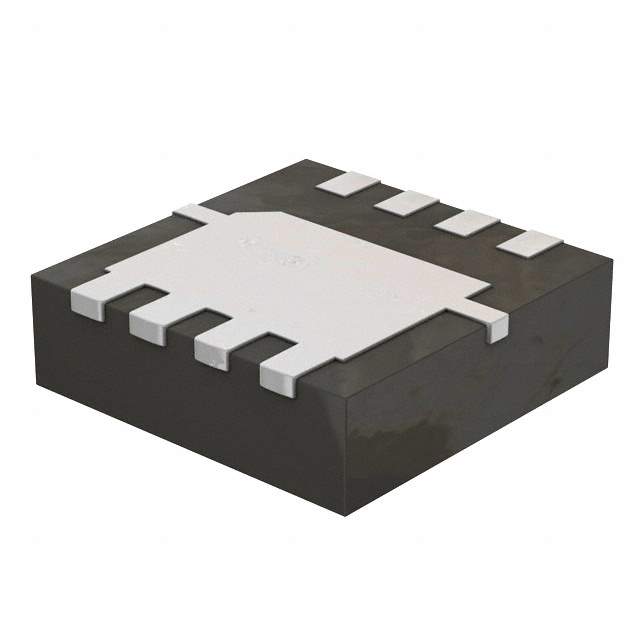

• Advanced Packaging: Enclosed in a 5-mm x 6-mm SON package, the CSD16327Q3T boasts an exposed thermal pad for enhanced thermal performance, allowing for higher current handling and improved heat dissipation.
• High Continuous Drain Current: This MOSFET supports a continuous drain current (I_D) of 100 A, accommodating the demands of high-power applications.
• Fast Switching Speed: Designed with rapid switching in mind, the CSD16327Q3T reduces switching losses, which is critical for high-frequency power converters.
• Optimized Gate Charge: Its low gate charge (Q_g) facilitates reduced driving power, contributing to the overall efficiency of the system.

Applications

The versatility of the CSD16327Q3T allows it to be integrated into a variety of applications, including:

• DC/DC Converters
• Motor Drives
• Power Supply Modules
• Point-of-Load (POL) Solutions
• Battery Management Systems

Quality and Reliability

As with all Texas Instruments products, the CSD16327Q3T is manufactured to meet high standards of quality and reliability. It is designed to withstand harsh environments and is compliant with RoHS standards, ensuring both performance and environmental responsibility.

Conclusion

The Texas Instruments CSD16327Q3T is a testament to the company's commitment to innovation in power management technology. Its combination of low on-resistance, high current capability, and fast switching speeds makes it an excellent choice for designers looking to optimize their power systems for both performance and size. Whether for consumer electronics or industrial applications, the CSD16327Q3T is engineered to enhance efficiency and reliability in any power management task.
