Overview of Texas Instruments CSD23381F4

The CSD23381F4 is a state-of-the-art MOSFET from Texas Instruments, designed for high-efficiency power management applications. This tiny yet powerful semiconductor device is part of TI's extensive portfolio of FETs that cater to a broad range of electronic systems. The CSD23381F4 is specifically engineered to provide low on-resistance and minimal gate charge, making it an ideal choice for applications where power density and efficiency are critical.

Key Features

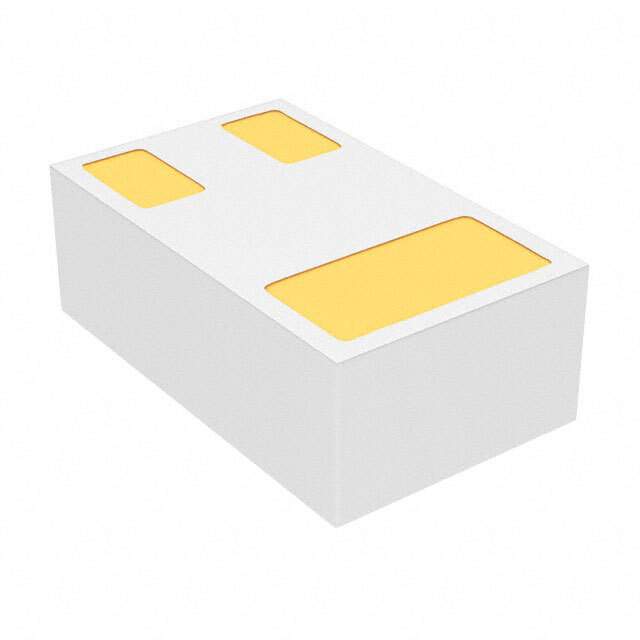

• Ultra-Small Footprint: The CSD23381F4 comes in an ultra-small 0.6 mm x 1.0 mm footprint, which is perfect for space-constrained applications.
• Low On-Resistance: It offers an exceptionally low on-resistance (R<sub>DS(on)) of just 20 mΩ at V<sub>GS = 4.5 V, contributing to reduced power losses and improved overall efficiency.
• High Continuous Drain Current: This MOSFET is capable of supporting a high continuous drain current (I<sub>D), further enhancing its suitability for demanding power applications.
• Advanced Technology: Manufactured with TI's advanced technology, the CSD23381F4 ensures high performance and reliability.

Applications

The versatility of the CSD23381F4 allows it to be used in a variety of applications, including:

• Power supply circuits
• DC-DC converters
• Battery management systems
• Load switches
• Portable electronics
• Energy-efficient power designs

Performance and Quality

Texas Instruments is known for its commitment to quality and performance, and the CSD23381F4 is no exception. It is designed to meet the stringent requirements of modern electronic devices, ensuring long-term reliability and performance. With its low thermal impedance and robustness against thermal and electrical stresses, this MOSFET is built to last in the most challenging environments.

Whether you're designing a compact mobile device or a high-performance power supply, the CSD23381F4 from Texas Instruments offers the efficiency, size, and reliability needed to elevate your design. Its superior electrical characteristics make it an excellent choice for designers looking to optimize their power management solutions.
