The CSD25402Q3A by Texas Instruments is a state-of-the-art N-Channel NexFET™ power MOSFET designed to deliver high performance in a compact package. This power MOSFET is ideal for a range of applications, particularly in power management tasks where efficiency and power density are critical.

Key Features:

• Ultra-Low On-Resistance: The device boasts an ultra-low on-resistance (R<sub>DS(on)) of just 8.9 mΩ at V<sub>GS = 4.5V, which significantly reduces conduction losses and enhances overall efficiency.

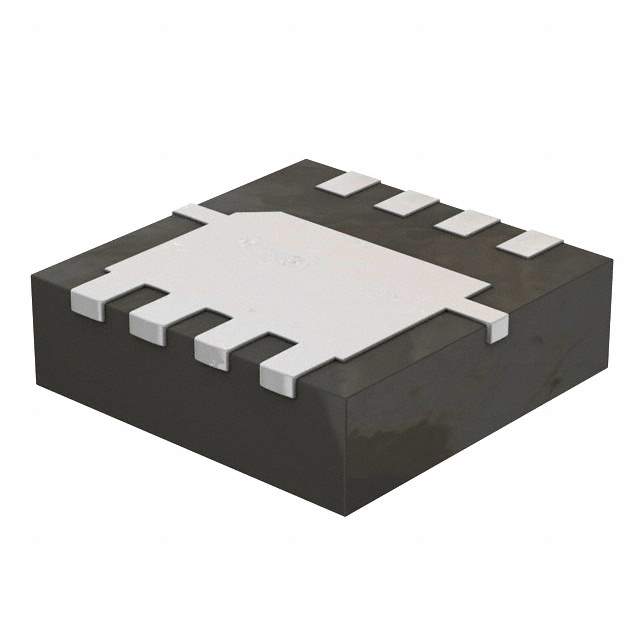

• Advanced Power Package: Encased in a compact 3.3 mm x 3.3 mm SON package, the CSD25402Q3A is designed for space-constrained applications, providing high power density without sacrificing performance.
• High Continuous Drain Current: With a continuous drain current (I<sub>D) of 54 A, this MOSFET can handle high current loads, making it suitable for demanding power applications.
• Optimized Gate Charge: The device features an optimized gate charge (Q<sub>g) that enables fast switching, contributing to reduced switching losses and improved power efficiency.

Applications:

The CSD25402Q3A is versatile and can be used in various applications, including:

• DC/DC conversion systems
• Motor control circuits
• Power supplies for servers, telecom, and networking equipment
• Battery management systems
• Load switches

Reliability and Performance:

Engineered for reliability, the CSD25402Q3A is characterized for operation from -55°C to 150°C. Its robust thermal and electrical characteristics make it an excellent choice for high-performance applications where long-term reliability is a must.

Environmental Compliance:

Texas Instruments is committed to environmental stewardship. The CSD25402Q3A is RoHS compliant, ensuring that it meets global standards for environmental safety and the restriction of hazardous substances.

For designers and engineers looking for a high-efficiency, space-saving power MOSFET solution, the CSD25402Q3A from Texas Instruments is an exceptional choice that balances performance with compactness, enabling innovative designs in a wide array of power management applications.
