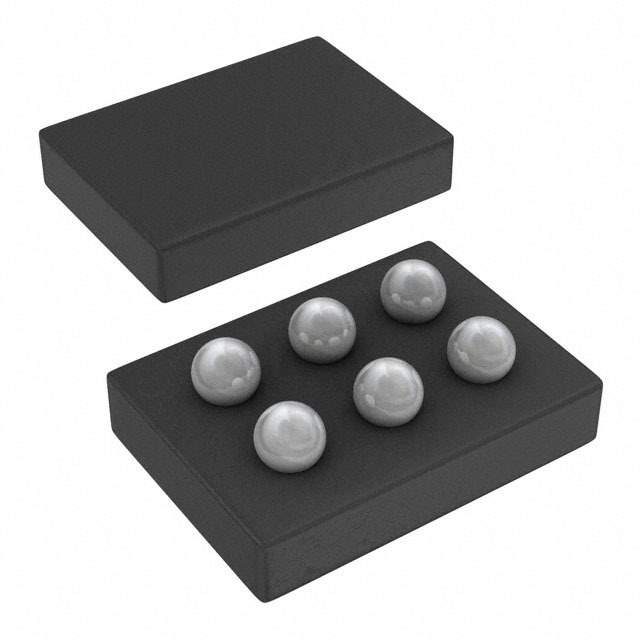

CSD75301W1015 Real Image
Same model may have multiple batches, images only for reference.

CSD75301W1015

Part No CSD75301W1015
Manufacturer Texas Instruments
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 20V 1.2A 6DSBGA
Datasheet
CSD75301W1015 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.2A
Maximum Rds On at Id,Vgs 100 mOhm @ 1A, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 2.1nC @ 4.5V
Max Input Capacitance 195pF @ 10V
Maximum Power Dissipation 800mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-DSBGA (1x1.5)
Win Source Part Number 188913-CSD75301W1015
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CSD75301W1015 CAD Model

Description

The CSD75301W1015 MOSFET is engineered for high-efficiency power conversion. Its state-of-the-art construction increases performance while reducing both switching losses and heat generation.

Features and Benefits

  • Low-Qg technology for improved speed and efficiency
  • Minimal drive losses
  • Sleek design supporting compact PCBs
  • Robust and reliable package

Applications

  • Laptop DC-DC converters
  • Power management units
  • Industrial power supplies
  • Power tools

The CSD75301W1015 provides the precision needed in your energy-efficient projects, enhancing the design of small- to medium-size power conversion systems.
