Product Overview: INA2181A1IDSQR from Texas Instruments

The INA2181A1IDSQR is a high-precision, dual-channel, current-sense amplifier designed by Texas Instruments to cater to a wide range of applications requiring accurate current measurement. This integrated circuit (IC) is part of the INA2181 family and comes in a compact, surface-mount package that is ideal for space-constrained applications.

Key Features

• Dual-Channel: The INA2181A1IDSQR features two independent current-sense amplifiers, enabling the monitoring of two separate current paths simultaneously. This is particularly useful in systems that require dual motor control or power management of multiple subsystems.
• High Accuracy: With a low offset voltage and high common-mode rejection ratio (CMRR), this amplifier ensures high accuracy in current measurements, making it suitable for precision sensing applications.
• Wide Common-Mode Range: The device supports a wide common-mode voltage range, accommodating a variety of supply voltages and providing design flexibility for different system requirements.
• Low Power Consumption: Designed with power efficiency in mind, the INA2181A1IDSQR operates with low quiescent current, minimizing power loss and making it suitable for battery-powered and energy-sensitive applications.

Applications

The INA2181A1IDSQR is versatile and can be used in various applications such as:

• Power management systems
• Battery chargers
• Industrial automation and control systems
• Automotive systems
• Telecommunication infrastructure

Technical Specifications

Some of the notable technical specifications of the INA2181A1IDSQR include:

• Supply Voltage Range: 2.7V to 5.5V
• Operating Temperature Range: -40°C to +125°C

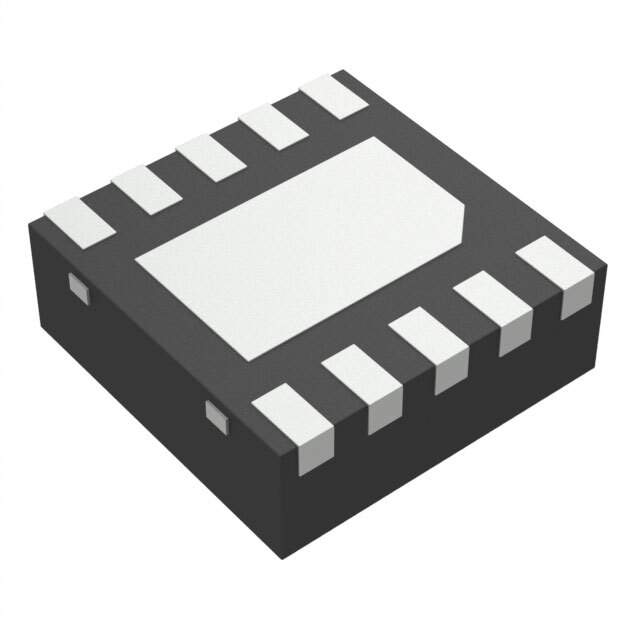

• Package: 10-pin WSON
• RoHS Compliant

With its robust feature set, the INA2181A1IDSQR from Texas Instruments is an excellent choice for designers looking for a reliable and precise current-sense solution. Its dual-channel capability, high accuracy, and low power consumption make it a go-to component for a multitude of applications that require the utmost in current sensing performance.
