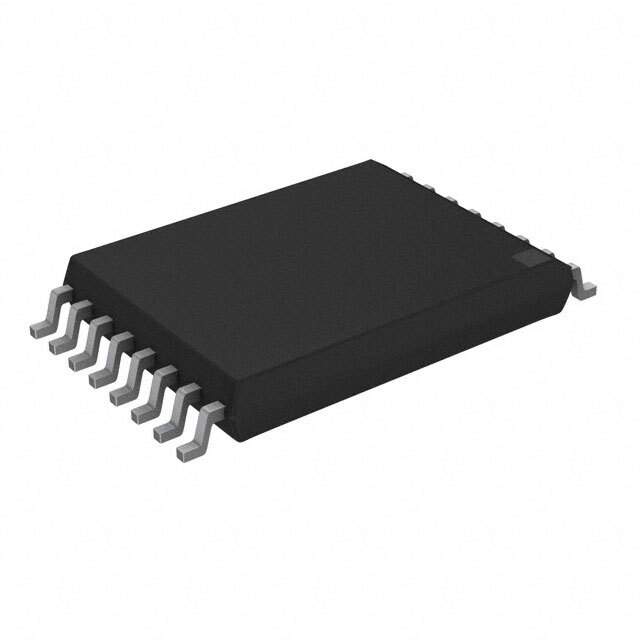

The ISO7821FDWWR is a high-performance, dual-channel digital isolator manufactured by Texas Instruments, designed to provide robust signal isolation for a variety of industrial and telecommunications applications. This device employs state-of-the-art silicon dioxide (SiO2) insulation to achieve high-voltage isolation between input and output data lines, ensuring reliable operation in electrically noisy environments.

Key Features

• Isolation Rating: The ISO7821FDWWR offers an impressive isolation voltage of 5000 Vrms for 1 minute per UL 1577, providing a high degree of protection against electrical surges and transient voltages.
• Data Rate: It supports a wide data rate range up to 100 Mbps, making it suitable for high-speed communication without compromising signal integrity.
• Channels: The device features two independent isolation channels, each capable of transmitting data in either direction, which allows for flexible implementation in various circuit configurations.
• Low Power Consumption: With its low power consumption, the ISO7821FDWWR is an energy-efficient choice for power-sensitive designs, helping to extend the life of battery-operated devices.
• Robustness: The device is designed to operate reliably over a wide temperature range of -40°C to +125°C, ensuring performance stability across diverse environmental conditions.
• Package: It comes in a 16-pin SOIC wide-body (DW) package, which helps to simplify PCB layout while still providing adequate creepage and clearance for high-voltage isolation requirements.
• Certifications: The ISO7821FDWWR is certified by various international safety standards, including VDE, CSA, TUV, and CQC, which underscores its compliance with stringent industry safety regulations.

Applications

The Texas Instruments ISO7821FDWWR digital isolator is ideal for use in a range of applications, including:

• Industrial automation and control systems
• Motor drive and inverter applications
• Medical equipment with stringent isolation requirements
• Power supplies
• Isolated serial communications interfaces

With its combination of high-speed data transmission, robust isolation, and low power consumption, the ISO7821FDWWR is a reliable solution for systems that require electrical isolation to maintain signal integrity and protect sensitive components.
