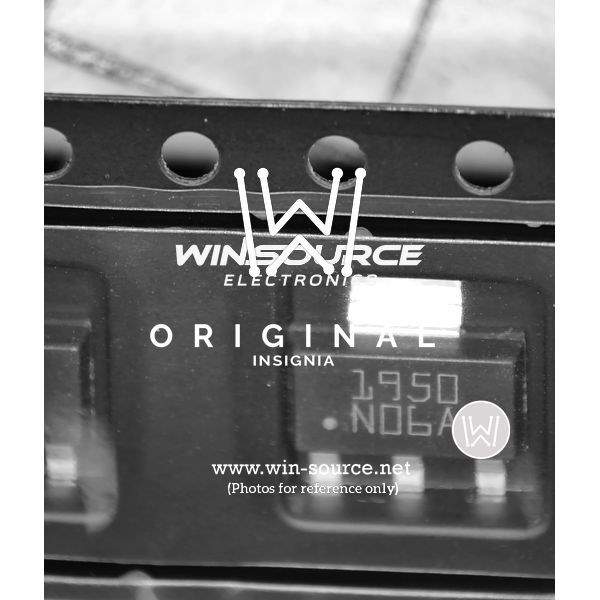

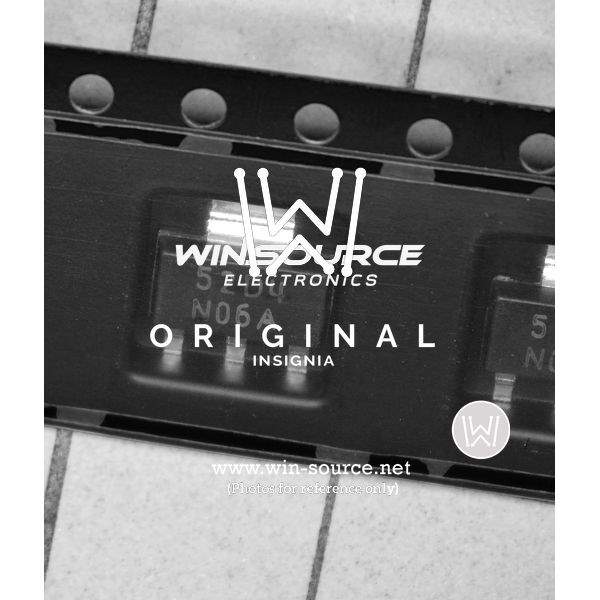

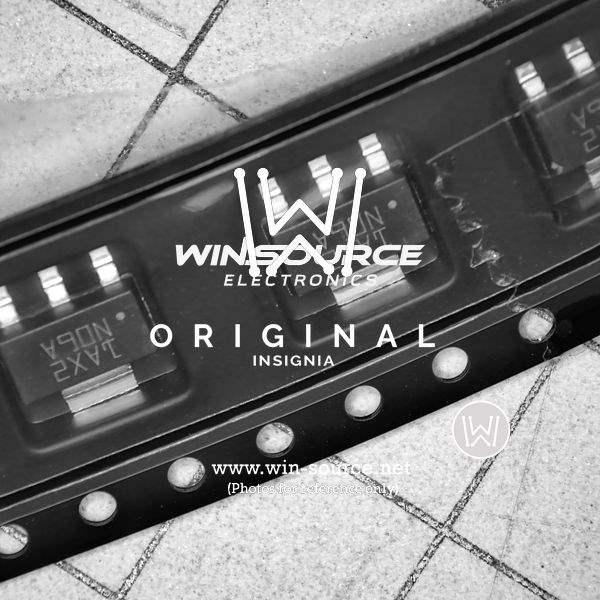

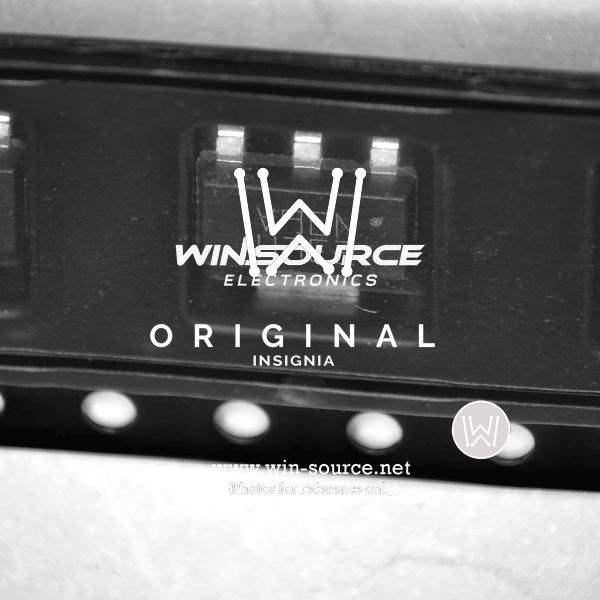

LM1117MP-5.0/NOPB Texas Instruments LM1117MP-5.0/NOPB Real Image LM1117MP-5.0/NOPB label picture LM1117MP-5.0/NOPB real image958 LM1117MP-5.0/NOPB real image959 LM1117MP-5.0/NOPB Real Image1 LM1117MP-5.0/NOPB Real Image2 LM1117MP-5.0/NOPB Real Image3
Same model may have multiple batches, images only for reference.
LM1117MP-5.0/NOPB Texas Instruments LM1117MP-5.0/NOPB Real Image LM1117MP-5.0/NOPB label picture LM1117MP-5.0/NOPB real image958 LM1117MP-5.0/NOPB real image959 LM1117MP-5.0/NOPB Real Image1 LM1117MP-5.0/NOPB Real Image2 LM1117MP-5.0/NOPB Real Image3
LM1117MP-5.0/NOPB Texas Instruments LM1117MP-5.0/NOPB Real Image LM1117MP-5.0/NOPB label picture LM1117MP-5.0/NOPB real image958 LM1117MP-5.0/NOPB real image959 LM1117MP-5.0/NOPB Real Image1 LM1117MP-5.0/NOPB Real Image2 LM1117MP-5.0/NOPB Real Image3
Same model may have multiple batches, images only for reference.

LM1117MP-5.0/NOPB

Part No LM1117MP-5.0/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 0.8A SOT223
Datasheet
LM1117MP-5.0/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 1.2V @ 800mA
Output Current 800mA
Operating Supply Current 5mA to 10mA
PSRR 75dB (120Hz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating 0°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 1.2V @ 800mA
Mounting SMD (SMT)
Case / Package SOT-223
Win Source Part Number 135725-LM1117MP-5.0/NOPB
Family Name LM1117
Introduction Date June 01, 1998
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM1117MP-5.0/NOPB CAD Model

Description

The LM1117MP-5.0/NOPB is a high-quality, highly efficient, low-dropout voltage regulator from Texas Instruments, a renowned global semiconductor company.

  • Output Voltage: 5.0V (regulated)
  • Input Voltage Range: 7.0V to 15V
  • Output Current: 800mA
  • Dropout Voltage: Low
  • Protection Features: Built-in current limiting and thermal shutdown protection
  • Package: SOT-223
  • Operating Temperature Range: -40°C to 125°C
  • Quiescent Current: Low
  • Compliance: RoHS compliant and lead-free
