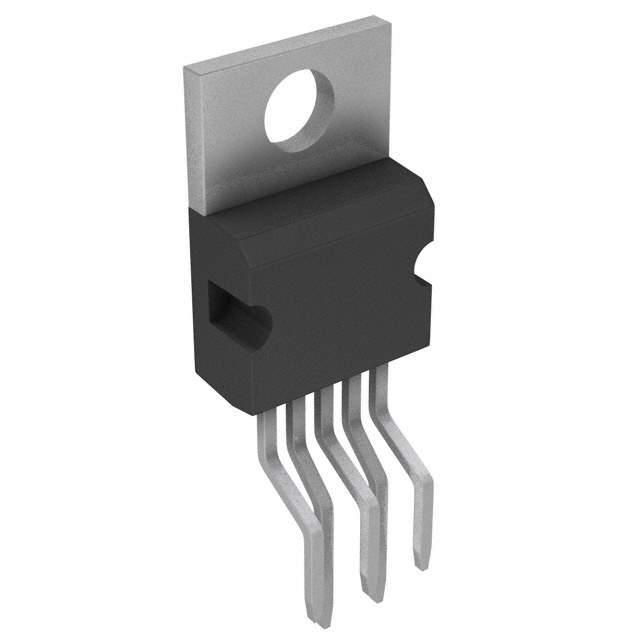

Product Overview: LM1875T/LB02 Audio Power Amplifier

The LM1875T/LB02 from Texas Instruments is a high-performance audio power amplifier capable of delivering 20 watts of continuous average power to a 4 Ohm load with less than 0.1% Total Harmonic Distortion (THD) across its audio spectrum from 20Hz to 20kHz. This component is sought after for its exceptional audio quality and has become a staple in both consumer and professional audio applications.

Key Features

• Output Power: Capable of delivering 20W into a 4 Ohm load or 30W into an 8 Ohm load, making it versatile for various audio setups.
• Low Distortion: Maintains a THD of less than 0.1% at rated power, ensuring high-fidelity sound reproduction.
• Wide Frequency Response: Offers a substantial frequency response range from 20Hz to 20kHz, suitable for full-range audio playback.
• Protection Features: Comes with built-in protection against over-temperature, over-voltage, and current overloads, enhancing its reliability and longevity.
• Simple Implementation: Requires very few external components for operation, facilitating an easy and cost-effective design.

Applications

The LM1875T/LB02 is ideal for a variety of audio applications, including but not limited to:

• Hi-Fi audio amplifiers
• Television sound systems
• Multimedia speakers
• Instrument amplifiers

Product Specifications

Parameter Value Part Number LM1875T/LB02 Manufacturer Texas Instruments Output Power 20W (4 Ohm), 30W (8 Ohm) THD Frequency Response 20Hz - 20kHz Operating Temperature -40°C to +85°C

The LM1875T/LB02 is a testament to Texas Instruments' commitment to quality and performance in audio technology. It is a reliable choice for designers and audio enthusiasts looking to create systems with clear, powerful sound without the complexity of many other amplifiers.
