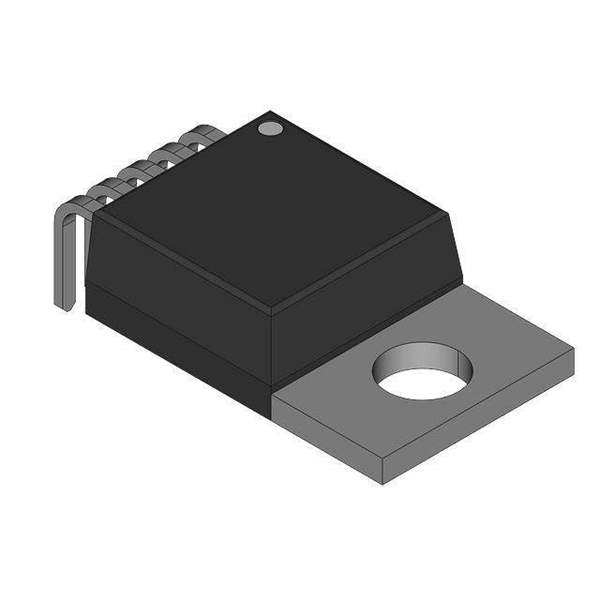

The LM2576HVT-5.0/LF02, manufactured by Texas Instruments, is a highly efficient, step-down voltage regulator that offers all the functional capabilities needed to implement a robust power supply. This regulator is part of the LM2576 series, which is known for its ease of use and versatility in a wide range of applications.

Key Features

• Output Voltage: The LM2576HVT-5.0/LF02 provides a fixed output voltage of 5V, which is suitable for logic circuits and standard digital components.
• Output Current: Capable of delivering up to 3A of continuous output current, this regulator can power a variety of devices and circuits without the need for additional heat sinking under normal operating conditions.
• High Efficiency: With a typical efficiency of up to 92%, the device ensures minimal power loss and heat generation, making it ideal for power-sensitive applications.
• Wide Input Voltage Range: This version of the LM2576 operates with an input voltage range from 4.5V to 60V, accommodating a broad spectrum of power sources.
• Thermal Shutdown and Current Limit Protection: Built-in safety features protect the device from over-current conditions and excessive temperature, enhancing the reliability and longevity of the regulator and the overall system.
• Simple External Components: The LM2576HVT-5.0/LF02 requires minimal external components, which simplifies design and reduces overall system cost.
• 52 kHz Fixed Frequency Internal Oscillator: The fixed-frequency oscillator reduces the need for external frequency compensation components and simplifies the design process.

Applications

The LM2576HVT-5.0/LF02 is a versatile component that can be used in various applications, including:

• Simple high-efficiency step-down (buck) regulators
• Efficient pre-regulators for linear regulators
• On-card switching regulators
• Positive to negative converter (Buck-Boost)

Conclusion

Overall, the LM2576HVT-5.0/LF02 from Texas Instruments is a reliable, efficient, and easy-to-use solution for a wide array of power supply requirements. Its robust feature set and simple design requirements make it an excellent choice for both novice and experienced designers alike, seeking to create stable and efficient power systems.
