The LM2623LDX/NOPB is a high-efficiency, general-purpose, step-up DC-DC switching regulator designed by Texas Instruments. This compact and versatile component is ideal for use in a variety of applications, including portable devices, where power efficiency and conservation are critical. The LM2623LDX/NOPB operates at a switching frequency of 1.2MHz, allowing for small surface mount inductors and capacitors to be used, resulting in a reduced footprint on the PCB.

Key Features

• Adjustable Output Voltage: The output voltage is adjustable, which provides flexibility in powering various devices requiring different voltage levels.
• High Efficiency: With its high-efficiency design, it reduces power loss during operation, thereby extending battery life in portable applications.
• Low Quiescent Current: It features a low quiescent current that minimizes standby power consumption, making it suitable for battery-powered devices.
• Internal Compensation: The device includes internal frequency compensation, which simplifies the design and reduces external component count.

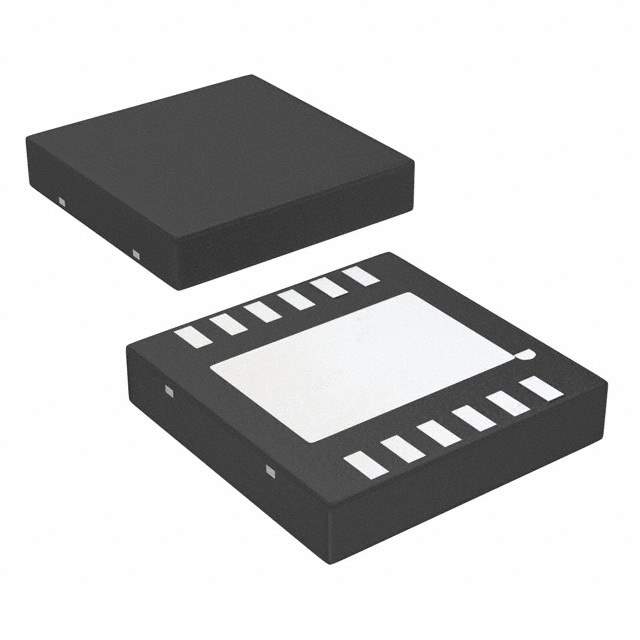

• Small Package: Housed in a small LLP-14 package, the LM2623LDX/NOPB saves space on the PCB, making it ideal for compact electronic assemblies.

Applications

• Portable and battery-powered equipment
• Handheld instruments
• Wireless peripherals
• Medical devices
• Power supply for sensors and small motors

Quality and Reliability

The LM2623LDX/NOPB is manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high standards of quality and reliability. The device is available in a lead-free, environmentally friendly package, and is characterized for operation from -40°C to 125°C, accommodating a wide range of temperature conditions.

Ordering Information

The part number LM2623LDX/NOPB signifies the device is provided in a tape and reel packaging suitable for automated assembly processes. When ordering, ensure to specify the correct package type and quantity to meet your manufacturing needs.
