The LM2794TLX is a high-performance, switch-mode charge pump designed and manufactured by Texas Instruments. It is engineered to efficiently manage power for white LED applications, making it an ideal choice for portable devices where power conservation is a priority. The device is capable of driving up to four LEDs with a constant current, ensuring uniform brightness and enhancing the user experience.

Key Features

• Charge Pump Technology: Utilizes a 1x/1.5x/2x fractional charge pump to optimize efficiency based on LED forward voltage requirements.
• Current Regulation: Provides precise current regulation for uniform intensity, which is crucial for maintaining consistent brightness across all LEDs.
• High Efficiency: Offers up to 90% efficiency, which helps to extend battery life in portable applications.
• Adjustable Brightness: Includes an I2C-compatible interface that allows for brightness control, enabling customizable lighting solutions.
• Thermal Protection: Features built-in thermal shutdown protection to prevent overheating and preserve device integrity.

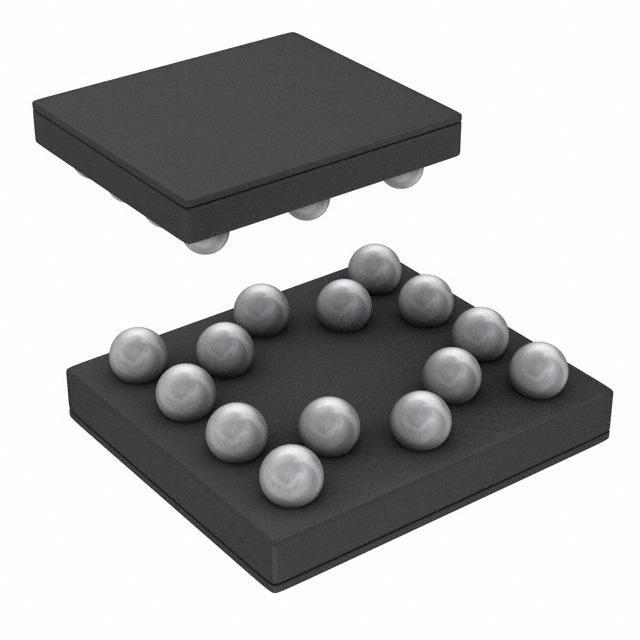

• Compact Packaging: Available in a small, lead-free NanoFree™ package, making it suitable for space-constrained applications.

Applications

The LM2794TLX is versatile and can be used in a variety of applications, particularly where efficient power management and space-saving solutions are required. Some common applications include:

• Smartphones and Tablets
• Portable Media Players
• Handheld Gaming Devices
• Digital Cameras
• Other Portable Devices with LED Backlighting

Technical Specifications

With its robust feature set and reliable performance, the LM2794TLX from Texas Instruments stands out as a premier solution for powering white LEDs in a multitude of portable electronic devices.
