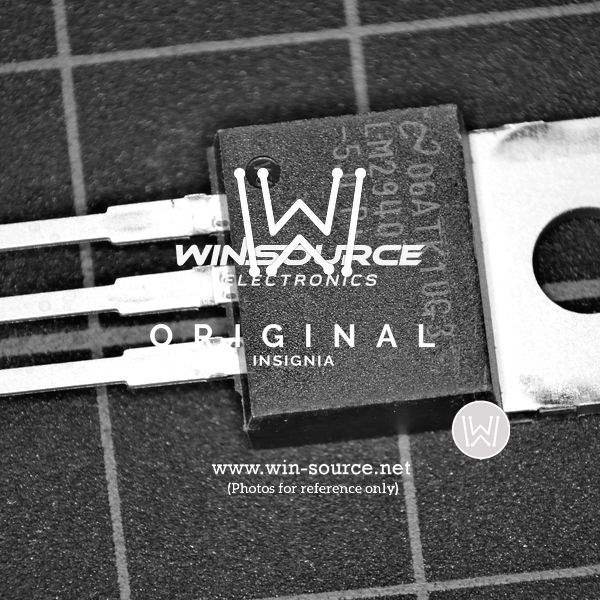

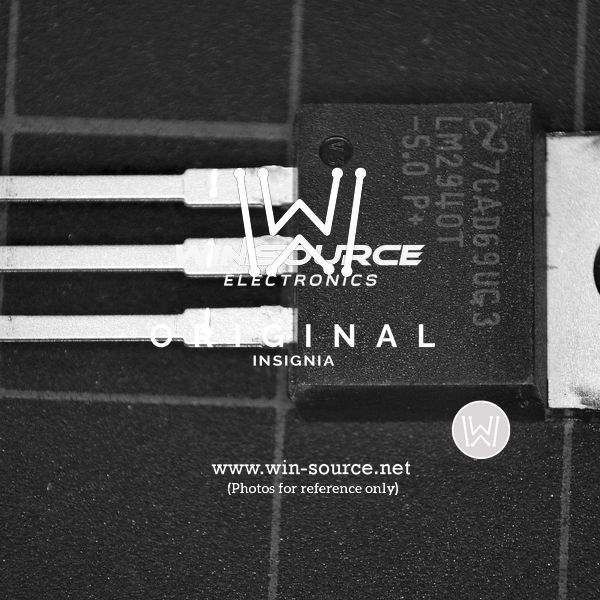

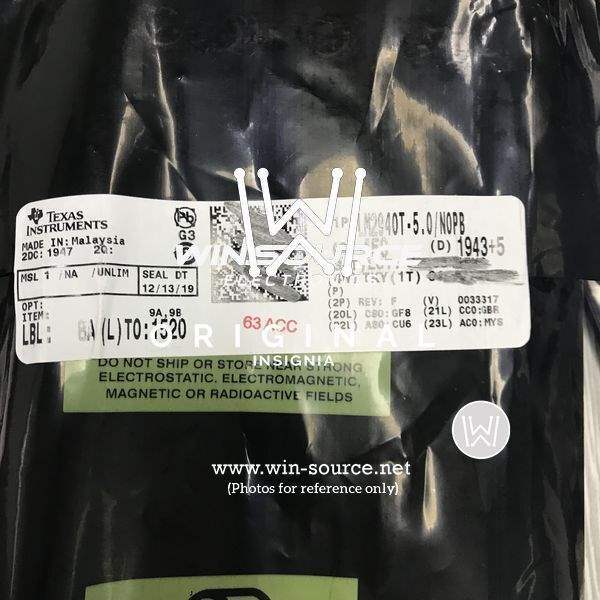

LM2940T-5.0/NOPB Real Image LM2940T-5.0/NOPB label picture LM2940T-5.0/NOPB Real Image1 LM2940T-5.0/NOPB Real Image2
Same model may have multiple batches, images only for reference.
LM2940T-5.0/NOPB Real Image LM2940T-5.0/NOPB label picture LM2940T-5.0/NOPB Real Image1 LM2940T-5.0/NOPB Real Image2
LM2940T-5.0/NOPB Real Image LM2940T-5.0/NOPB label picture LM2940T-5.0/NOPB Real Image1 LM2940T-5.0/NOPB Real Image2
Same model may have multiple batches, images only for reference.

LM2940T-5.0/NOPB

Part No LM2940T-5.0/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 5V 1A TO220-3
Datasheet
LM2940T-5.0/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Output Type Fixed
Number of Regulators 1
Maximum Input Voltage 26V
Nominal Output Voltage (Min/Fixed) 5V
Dropout Voltage-Max 1V @ 1A
Output Current 1A
Operating Supply Current 10mA to 15mA
PSRR 64dB (120Hz)
Control Protection Features Over Current, Over Temperature, Reverse Polarity, Short Circuit
Temperature Range - Operating -40°C to 125°C
Regulator Topology Positive Fixed
Output Voltage 5V
Voltage - Dropout (Typical) 0.5V @ 1A
Mounting Through Hole
Case / Package TO-220-3
Win Source Part Number 019007-LM2940T-5.0/NOPB
Family Name LM2940
Introduction Date November 17, 2012
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM2940T-5.0/NOPB CAD Model

Description

The LM2940T-5.0/NOPB is a high-quality, high-performance low-dropout voltage regulator from Texas Instruments, a world-renowned manufacturer of semiconductors.

  • Output Voltage: 5.0V
  • Current: 1A
  • Dropout Voltage: Low
  • Line and load regulation: Excellent
  • Safety features: Current limiting and thermal shutdown
  • Safety Feature: Reverse battery protection circuit
  • Package: TO-220
  • RoHS compliant and free from lead, bromine and antimony: Yes
