LM2941CSX - Texas Instruments Low Dropout Regulator

The LM2941CSX from Texas Instruments represents a reliable and efficient solution in the realm of low dropout (LDO) voltage regulators. Designed to maintain a constant output voltage despite variations in input voltage and load conditions, this regulator is particularly well-suited for battery-powered applications where extended life is crucial.

Key Features:

• Output Voltage Range: The LM2941CSX offers an adjustable output voltage range from 5V to 20V, which can be set with external resistors. This flexibility makes it suitable for a wide array of applications.
• Dropout Voltage: Featuring a low dropout voltage of typically 0.5V at a 1A load, it ensures efficient operation close to the input voltage, minimizing power loss and heat generation.
• Load Current: It can deliver up to 1A of load current, making it capable of powering a range of devices from microcontrollers to small motors.
• Thermal Shutdown and Current Limit: Safety features include thermal shutdown and current limit, protecting the device and the load from damage due to overheating or excessive current draw.
• Low Ground Pin Current: The typical ground pin current of 30 mA at 1A load contributes to the overall efficiency of the regulator, especially beneficial in battery-operated devices.

Applications:

The LM2941CSX is versatile and can be used in various applications such as:

• Automotive electronics
• Portable/battery-powered equipment
• Laptops and personal computers
• Industrial and telecommunications systems

Package and Quality:

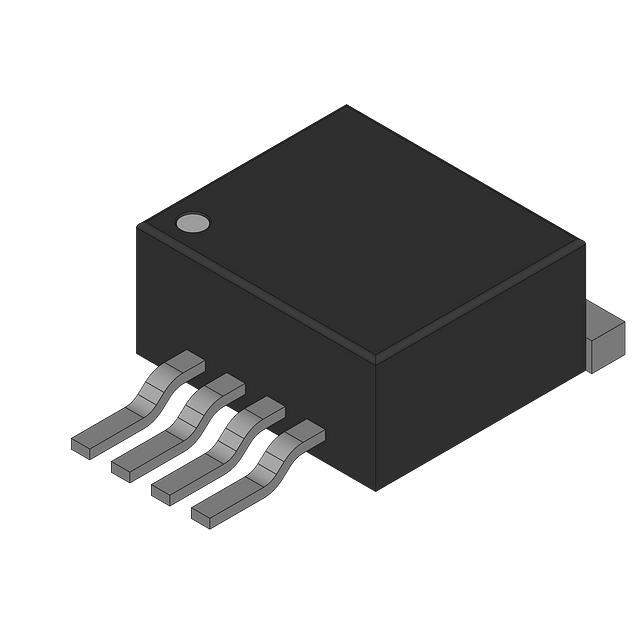

This regulator is available in a TO-263 surface-mount package, which is designed for optimal thermal performance and space-saving on PCBs. Manufactured by Texas Instruments, a leader in semiconductor solutions, the LM2941CSX meets high-quality standards, ensuring reliability and performance for critical applications.

Conclusion:

With its robust feature set and Texas Instruments' reputation for quality, the LM2941CSX is an excellent choice for designers seeking a versatile and dependable voltage regulator. Whether for automotive, portable, or industrial applications, this LDO regulator provides a stable power supply, enhancing system performance and reliability.
