Product Overview: LM337T/LF01 Voltage Regulator

The LM337T/LF01 is a versatile and reliable adjustable negative voltage regulator designed by Texas Instruments. This component is essential for applications that require a precisely controlled negative voltage source. Its ability to provide a variable output voltage makes it ideal for a wide range of electronic devices, from power supplies to automotive electronics.

Key Features

• Adjustable Output Voltage: The LM337T/LF01 offers an output voltage range that can be set from -1.2V to -37V, giving designers the flexibility to tailor the voltage to their specific needs.
• Output Current: Capable of delivering up to 1.5A of output current, this regulator can handle a reasonable amount of load, making it suitable for various applications.
• Thermal Overload Protection: The device includes built-in thermal overload protection that shuts down the regulator to prevent damage if it gets too hot.
• Short Circuit Protection: In the event of a short circuit, the LM337T/LF01 is protected from potential damage thanks to its short circuit protection feature.
• Low Quiescent Current: The regulator maintains a low quiescent current in operation, which improves its efficiency and makes it ideal for battery-powered applications.

Specifications

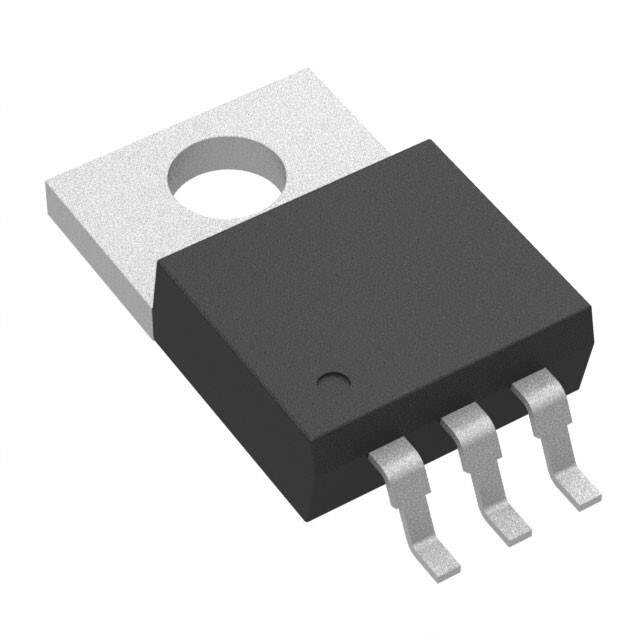

The LM337T/LF01 comes in a TO-220 package, known for its robustness and ease of mounting on a printed circuit board. Its operating temperature range of -40°C to +125°C ensures stability and performance even under extreme conditions.

Whether you're developing power supplies, instrumentation, or automotive electronics, the LM337T/LF01 from Texas Instruments is a reliable choice for your negative voltage regulation needs. Its combination of adjustability, protection features, and efficient operation make it a valuable component for any electronics engineer or designer.
