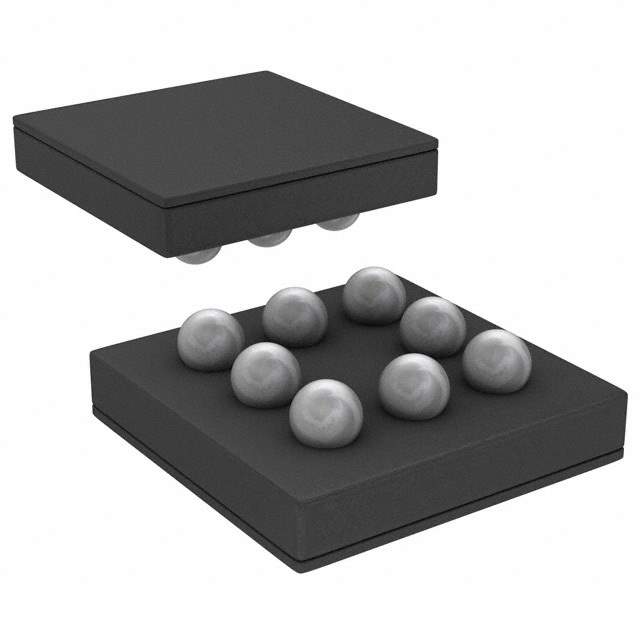

LM3500TLX-16 Real Image
Same model may have multiple batches, images only for reference.

LM3500TLX-16

Part No LM3500TLX-16
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 400MA 8USMD
Datasheet
LM3500TLX-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 7V
Output Voltage 16V
Channel Output Current 400mA (Switch)
Frequency 1MHz
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 8-uSMD
Win Source Part Number 082726-LM3500TLX-16
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3500TLX-16 CAD Model

Description

The LM3500TLX-16 from Texas Instruments is a high-performance, adaptive, constant current white LED driver that is designed to provide optimal performance and efficiency in driving a string of up to 16 LEDs.

  • Input Voltage Range: 2.7V to 5.5V
  • Output Voltage: Up to 40V
  • Switching Frequency: Up to 1.6MHz
  • Dimming Capability: PWM dimming and analog dimming
  • Package: Tiny, 16-bump micro SMD package
