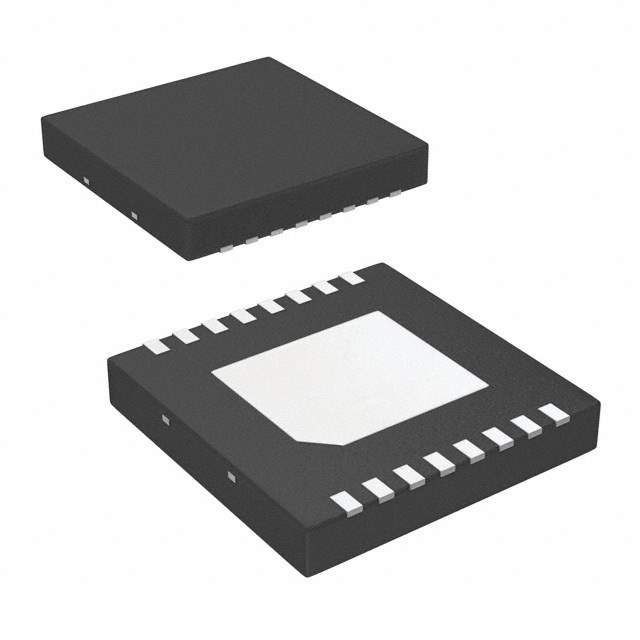

LM5025BSDX Real Image
Same model may have multiple batches, images only for reference.

LM5025BSDX

Part No LM5025BSDX
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - DC DC Switching Controllers
Description IC REG CTRLR FWRD CONV 16WSON
Datasheet
LM5025BSDX Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Transistor Driver
Purpose Step-Up/Step-Down
Topology Forward Converter
Number of Outputs 2
Output Phases 1
Supply Voltage - Operating 8 V to 15 V
Frequency - Switching 200kHz to 400kHz
Duty Cycle (Max) 71%, 73%
Synchronous Rectifier No
Clock Sync Yes
Control Features Dead Time Control, Frequency Control, Ramp, Soft Start
Temperature Range - Operating -40°C to 125°C (TJ)
Case / Package 16-WSON (5x5)
Win Source Part Number 071498-LM5025BSDX
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM5025BSDX CAD Model

Description

The LM5025BSDX from Texas Instruments is a high-performance, versatile power management device designed to offer optimal control for a wide range of applications.

  • Feature: High-voltage startup capability
  • Protection: Over-voltage protection, under-voltage lockout, and thermal shutdown
  • Feature: Wide input voltage range
  • Feature: Programmable soft-start function
  • Package: Compact, surface-mount
