Product Overview: LM536015QUDSXRQ1 from Texas Instruments

The LM536015QUDSXRQ1 is a high-performance, automotive-grade step-down voltage regulator designed and manufactured by Texas Instruments. This advanced power management integrated circuit (IC) is specifically engineered to meet the stringent requirements of automotive applications, offering a robust and reliable solution for voltage regulation in a variety of systems.

With an input voltage range of 3.5V to 36V, the LM536015QUDSXRQ1 is versatile and can operate efficiently over a wide range of battery voltages and load conditions, making it ideal for automotive environments where battery voltage can vary significantly. This feature ensures that the device can handle start-stop operations and cold-crank conditions without compromising performance.

The output voltage is adjustable from 0.8V to 90% of VIN, providing the flexibility to power a broad spectrum of automotive subsystems and microcontrollers. The LM536015QUDSXRQ1 is capable of delivering up to 1.5A of continuous current, which is sufficient for powering low to medium power devices within the vehicle.

One of the key features of this voltage regulator is its high efficiency, which is achieved through a combination of pulse-width modulation (PWM) and pulse-frequency modulation (PFM) modes. This ensures optimal power consumption across different load conditions, contributing to the energy efficiency of the automotive system it is integrated into.

The LM536015QUDSXRQ1 is designed with protection features such as thermal shutdown, overcurrent protection, and undervoltage lockout, enhancing the safety and reliability of the application. It also supports a synchronization input that allows multiple ICs to operate in sync, reducing noise and potential interference within the electronic system.

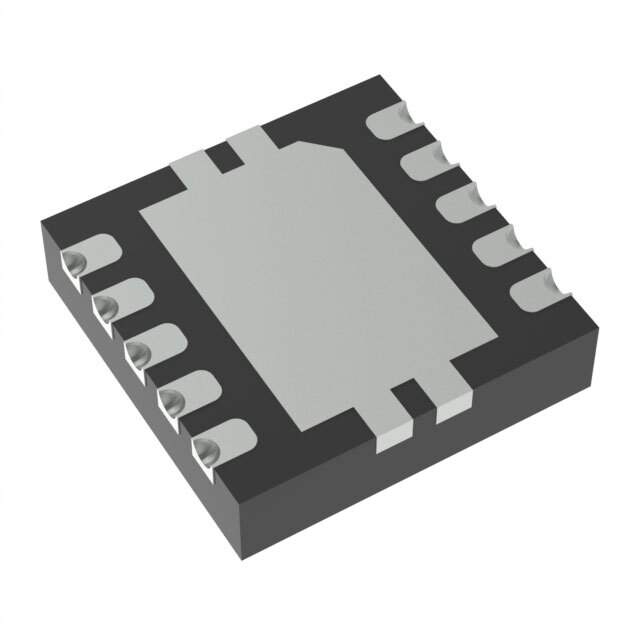

Encased in a compact QFN package, the LM536015QUDSXRQ1 is designed for space-constrained applications. Its small footprint is particularly beneficial in modern vehicles where electronic systems are becoming increasingly complex, and space is at a premium.

In summary, the LM536015QUDSXRQ1 from Texas Instruments is a highly efficient, durable, and flexible solution for automotive power regulation. Its wide input voltage range, adjustable output, and robust protection features make it an excellent choice for designers looking to enhance the performance and reliability of their automotive electronic systems.
