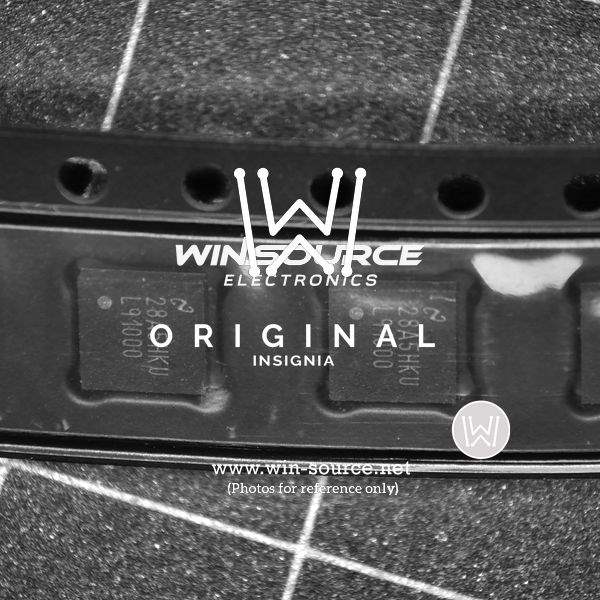

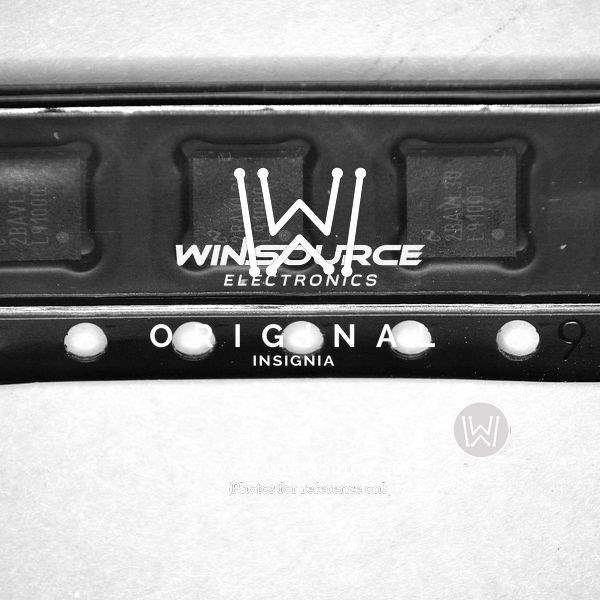

Overview of Texas Instruments LMP91000SD/NOPB

The LMP91000SD/NOPB is a highly integrated, configurable sensor Analog Front End (AFE) by Texas Instruments, designed for use in micro-power chemical and gas sensing applications. This versatile solution is suitable for a wide range of portable and stationary applications, including industrial safety, environmental monitoring, and medical diagnostics.

Key Features

• Programmable Gain Amplifier (PGA): The device includes a PGA with gains of 1, 7, 14, and 28, allowing for signal amplification to match the sensitivity of various sensors.
• Programmable Output Voltage: The LMP91000SD/NOPB features a programmable output voltage, enabling it to interface with a variety of analog-to-digital converters (ADCs) for data acquisition.
• Configurable Electrode Biasing: Users can configure the biasing of the working electrode to optimize sensor performance.
• Low Power Consumption: Designed for battery-powered applications, the device operates with a low current draw, extending the life of portable devices.
• Temperature Compensation: The built-in temperature compensation feature ensures stable performance across a range of environmental conditions.
• Flexible Interface: The LMP91000SD/NOPB is compatible with a wide range of microcontrollers through its I2C interface, making system integration straightforward.

Applications

The LMP91000SD/NOPB is ideal for electrochemical sensing applications, such as:

• Residential and commercial gas detectors
• Industrial safety monitors
• Portable and fixed medical diagnostic equipment
• Environmental monitoring systems

Supporting Tools and Documentation

Texas Instruments provides comprehensive support for the LMP91000SD/NOPB, including evaluation modules, application notes, and design resources to facilitate rapid development and deployment of end products. Detailed technical documentation, such as datasheets and user guides, is also readily available to ensure a smooth integration into various sensing solutions.

With its configurable settings, low power operation, and robust interface options, the LMP91000SD/NOPB stands out as a flexible and reliable choice for developers looking to incorporate advanced sensing capabilities into their next-generation devices.
