Overview of the LMP92001SQX/NOPB

The LMP92001SQX/NOPB is a multi-channel, low-power, 16-bit Sensor AFE (Analog Front End) with a precision 24-bit sigma-delta ADC (Analog-to-Digital Converter) designed by Texas Instruments. This advanced integrated circuit is specifically engineered to provide accurate data acquisition and signal conditioning for a variety of sensors. Its primary application is in industrial, medical, and general-purpose sensor measurement and monitoring systems.

Key Features

• High-Resolution ADC: The product incorporates a 24-bit sigma-delta ADC that ensures high-precision data conversion with minimal noise, making it ideal for applications that require accurate sensor readings.
• Multiple Sensor Inputs: It supports up to 10 differential inputs or 20 single-ended inputs, offering flexibility for various sensor configurations.
• Programmable Gain: The device features a programmable gain amplifier (PGA), which allows users to adjust the gain to match the requirements of different sensors, enhancing the dynamic range and sensitivity.
• Low Power Consumption: Designed with energy efficiency in mind, the LMP92001SQX/NOPB is suitable for battery-powered or energy-conscious applications.
• Integrated Temperature Sensor: An on-chip temperature sensor provides additional functionality, enabling temperature compensation or monitoring without the need for an external component.
• Communication Interface: The AFE includes an SPI (Serial Peripheral Interface) for communication with microcontrollers or digital systems, facilitating easy integration into existing designs.

Applications

• Industrial Process Control
• Medical Instrumentation
• Environmental Monitoring Systems
• Smart Sensing Devices

Quality and Reliability

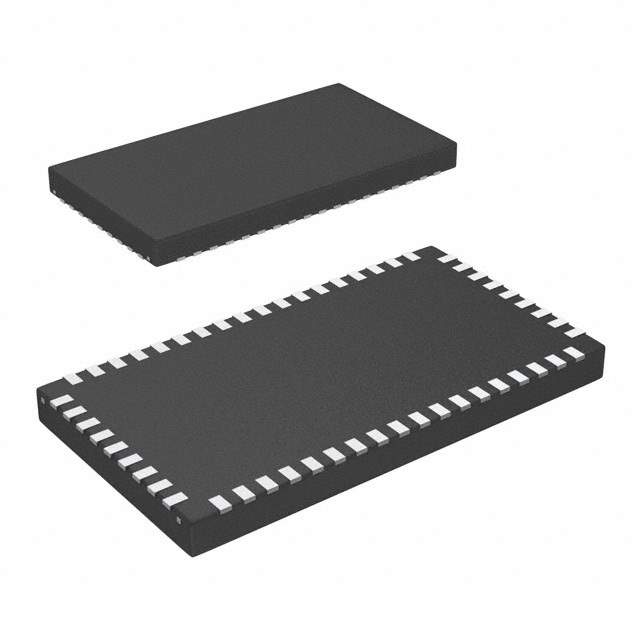

The LMP92001SQX/NOPB is provided in a compact, surface-mount package and is characterized for operation over an extended temperature range. Texas Instruments is known for its commitment to quality, and this product is no exception, ensuring reliable performance in demanding environments.

Ordering Information

The part number LMP92001SQX/NOPB signifies the device is offered in a lead-free, environmentally friendly package and is available for order in various quantities to meet the needs of both large-scale production and prototyping.
