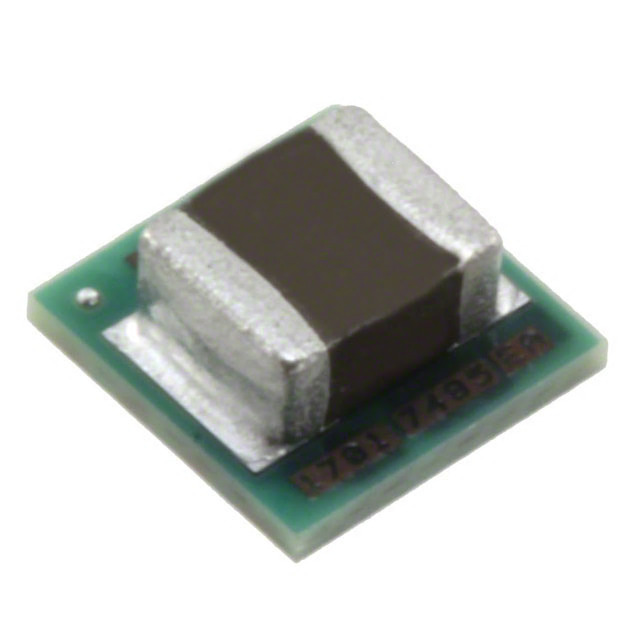

The LMZ21701SILR is a state-of-the-art, easy-to-use power solution from Texas Instruments, designed to meet the needs of a wide range of electronic applications. This nano module is part of the SIMPLE SWITCHER® family, which is renowned for its simplicity and high performance in power supply design. The LMZ21701SILR is an integrated power solution that combines a DC-DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package.

Key Features

• High Efficiency: The device offers an efficiency of up to 95%, which helps to minimize energy loss and heat generation, thereby enhancing system reliability and performance.
• Compact Design: With its small form factor (measuring just 3mm x 2mm x 1.6mm), the LMZ21701SILR is perfect for space-constrained applications.
• Wide Input Voltage Range: It operates over a wide input voltage range from 2.7V to 17V, making it versatile for various input sources and suitable for a broad array of products.
• Adjustable Output Voltage: The output voltage is adjustable from 0.6V to 5.5V, which allows for a high degree of flexibility to power different ICs and peripherals.
• Integrated Shielded Inductor: The inclusion of a shielded inductor within the module helps to reduce electromagnetic interference (EMI), thus simplifying design considerations for EMI-sensitive applications.

Applications

The LMZ21701SILR is ideal for a variety of applications, including but not limited to:

• Space-constrained and portable applications
• Point-of-load conversions from a 5V or 3.3V rail
• FPGAs, DSPs, and microprocessors
• Telecommunications and networking equipment
• Industrial and automotive systems

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The LMZ21701SILR is manufactured to stringent quality standards, ensuring reliable performance in demanding environments. Additionally, this nano module is supported by Texas Instruments' comprehensive technical documentation and design tools, making integration into your product development cycle a breeze.
