Introducing the MRFE6VP61K25HR5 RF Power Transistor

The MRFE6VP61K25HR5 is a state-of-the-art RF power transistor from NXP Semiconductors, designed to deliver exceptional performance for a wide range of applications. As a part of NXP's high ruggedness series, this product is engineered to withstand extreme VSWR conditions, making it an ideal choice for both commercial and military use.

Key Features

• High Power: With an output power of 1250W CW over a broad frequency range, this LDMOS transistor can handle high power applications with ease.
• Wide Frequency Range: It operates efficiently across a frequency range of 1.8-600 MHz, providing versatility for various RF applications.
• High Ruggedness: The MRFE6VP61K25HR5 is designed to be highly rugged and can endure a VSWR of 65:1 at 50V, ensuring reliability and longevity in harsh environments.
• High Efficiency: It boasts a high efficiency of up to 78%, which results in a reduced operating cost and a cooler system operation, leading to a longer product life.
• Integrated ESD Protection: With integrated ESD protection, this transistor is safeguarded against unexpected electrostatic discharges, enhancing its durability.

Applications

The MRFE6VP61K25HR5 is suitable for a variety of applications, including but not limited to:

• Industrial, scientific, and medical (ISM) applications
• Broadcast transmitters for radio and television
• Aerospace and defense communications systems
• Mobile radio base stations
• Ham radio amplifiers

Product Specifications

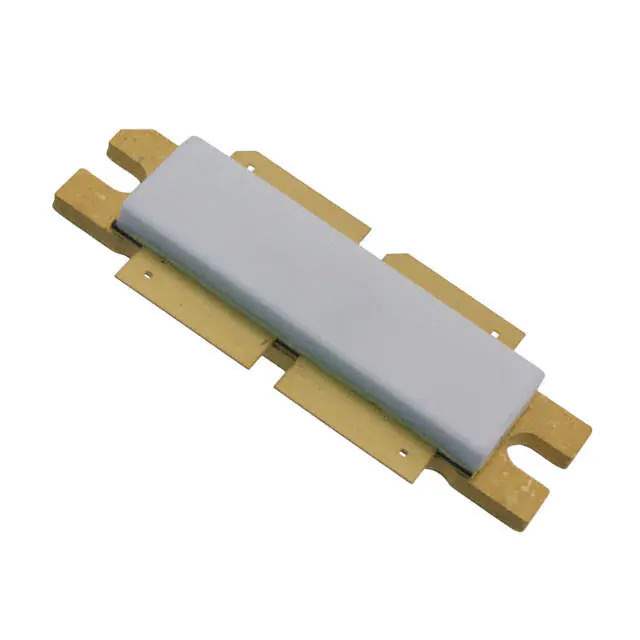

The MRFE6VP61K25HR5 is encapsulated in a high-performance ceramic package that ensures excellent thermal stability and ruggedness. It is designed to operate at a supply voltage of 50V and is characterized by a high gain of 26 dB, which makes it highly efficient in signal amplification.

Conclusion

With its combination of high power, wide frequency range, and extreme ruggedness, the MRFE6VP61K25HR5 from NXP Semiconductors is a top-tier solution for demanding RF power applications. Its robust construction and integrated protection features ensure that it delivers consistent performance and reliability, making it a preferred choice for industry professionals.
