Product Overview: LP38502TJ-ADJ/NOPB

The LP38502TJ-ADJ/NOPB is a high-performance, low-dropout (LDO) linear voltage regulator from Texas Instruments, designed to deliver a customizable voltage output with high accuracy. This adjustable regulator can be set to any voltage within its operating range by using external resistors, making it a versatile choice for a wide range of applications.

Key Features

• Adjustable Output Voltage: The LP38502TJ-ADJ/NOPB offers an output voltage range that can be adjusted from 1.21V to 5.5V, providing the flexibility needed to power various electronic components.
• High Output Current: This LDO regulator can supply up to 1.5A of continuous output current, making it suitable for high-power applications.
• Low Dropout Voltage: The device has a low dropout voltage, which ensures efficient operation even when the input voltage is close to the output voltage, thus reducing power loss and improving efficiency.
• Stable with Low ESR Output Capacitors: The LP38502TJ-ADJ/NOPB is stable with ceramic and other types of low ESR capacitors, providing more flexibility in component selection and reducing overall design cost.
• Thermal Protection: It includes thermal shutdown and current limit features to protect the device under abnormal operating conditions.
• Excellent Load and Line Regulation: The regulator maintains a consistent output voltage despite variations in input voltage and load, ensuring reliable performance.

Applications

The LP38502TJ-ADJ/NOPB is ideal for a range of applications that require a stable and adjustable power supply. It can be used in:

• Networking Equipment
• Industrial Control Systems
• Automotive Electronics
• Telecommunications Infrastructure
• Portable and Battery-powered Devices

Quality and Reliability

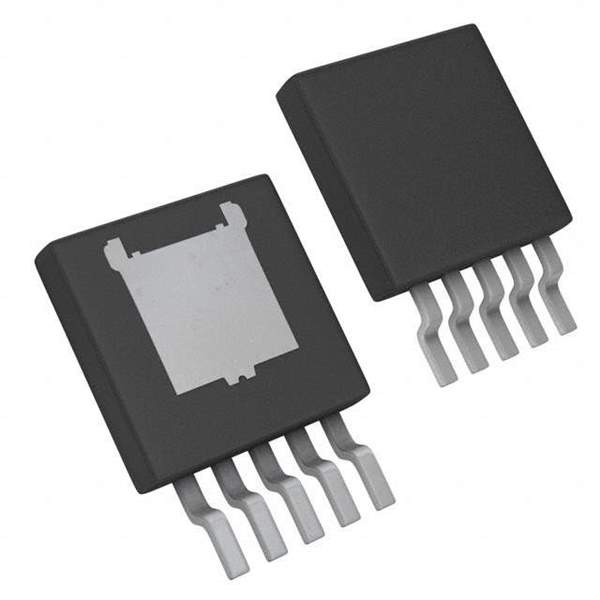

Manufactured by Texas Instruments, a leader in semiconductor solutions, the LP38502TJ-ADJ/NOPB is built to the highest quality standards. Its robust design ensures reliable operation in various environments and applications. The device is available in a thermally-enhanced TO-263 package, which provides improved power dissipation capabilities.

With its combination of features, the LP38502TJ-ADJ/NOPB is a highly efficient solution for designers looking to optimize their power supply systems with an adjustable, low-dropout voltage regulator.
