Introducing the LP3944ISQX LED Driver from Texas Instruments

The LP3944ISQX is a highly versatile and efficient LED driver integrated circuit (IC) designed by Texas Instruments (TI), a leader in semiconductor solutions. This compact and feature-rich IC is ideal for a variety of applications that require LED driving capabilities, including mobile phones, personal electronics, and handheld devices.

At the heart of the LP3944ISQX is the ability to control up to eight LEDs independently, making it a perfect solution for status or indicator lights, as well as keyboard backlights. This is enabled through its I<sup>2C-compatible interface, which allows for precise brightness control and flexible on/off functionality, providing designers with the tools they need to create sophisticated lighting effects and power-saving modes.

The LP3944ISQX operates over a wide voltage range, from 2.7V to 5.5V, ensuring compatibility with a broad spectrum of power sources, from batteries to regulated power supplies. Its low-power consumption is a standout feature, contributing to extended battery life in portable applications. Moreover, the device's built-in thermal shutdown protection ensures reliability and longevity by preventing overheating.

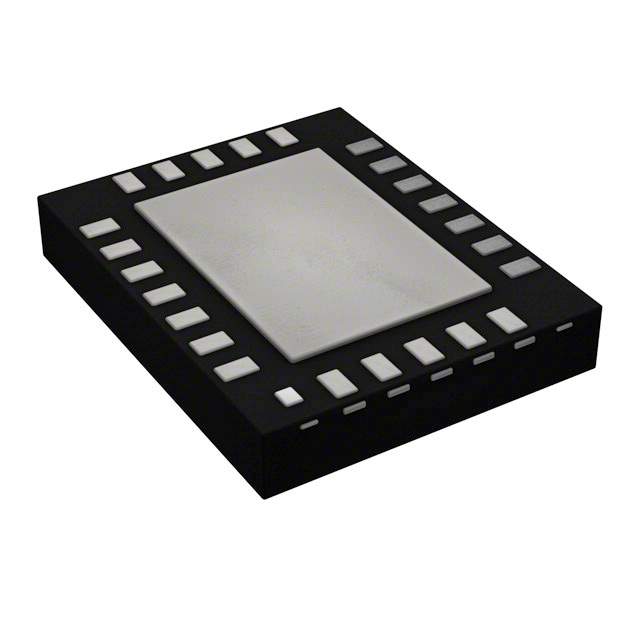

Engineered with the end-user in mind, the LP3944ISQX comes in a compact, space-saving 24-lead LLP package. This small footprint allows for seamless integration into space-constrained designs without sacrificing performance. Additionally, the device is designed for straightforward implementation, with minimal external components required, which simplifies the design and reduces time to market.

Key features of the LP3944ISQX include:

• Independent control of up to eight LEDs
• I<sup>2C-compatible interface for flexible control
• Wide operating voltage range (2.7V to 5.5V)
• Low power consumption for battery-powered applications
• Thermal shutdown protection for enhanced safety
• Compact 24-lead LLP package for space-constrained applications

With its combination of independent channel control, low power usage, and compact design, the LP3944ISQX from Texas Instruments is an excellent choice for designers looking to add sophisticated LED lighting functionality to their next project.
