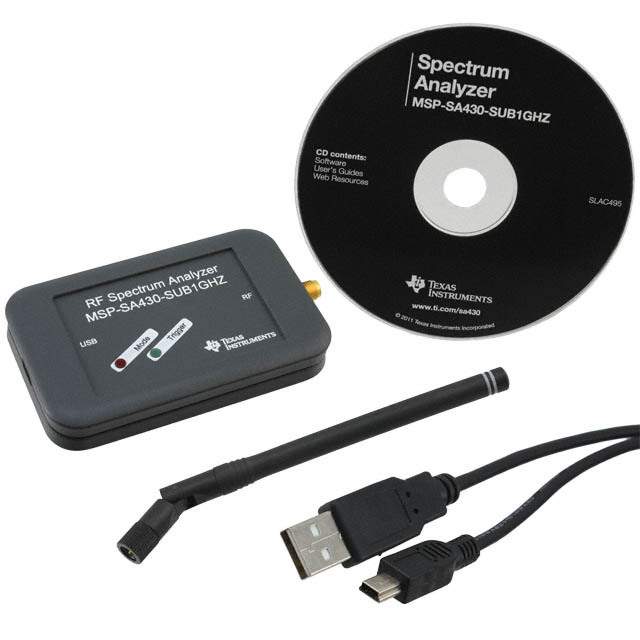

Same model may have multiple batches, images only for reference.

MSP-SA430-SUB1GHZ

Name: MSP-SA430-SUB1GHZ
Brand: Texas Instruments
SKU: 1342200
Availability: InStock
Rating: 5 (277 reviews)

Part No	MSP-SA430-SUB1GHZ
Manufacturer	Texas Instruments
Catalog	Evaluation and Demonstration Boards and Kits
Description	KIT SPECTRUM ANALYZER / CC430 Spectrum Analyzer Reference Design Evaluation Board
Datasheet	MSP-SA430-SUB1GHZ Datasheet
Sample
Rohs State	Need to verify
ECAD Module

	New List Existing List This product has been added to your List. List Name:

Shipping Information

Shipped from	HK warehouse
Expected Shipping Date	Ship today if order in (HKT)
Supplier Lead-Time	Call for availability
Estimate shipping fee	Enter your destination to get a shipping estimate Estimate Shipping Fee

Pricing & Ordering $391.131

Quantity

Unit Price

Ext. Price

$376.8120

$376.812

* The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Availability: 8 pieces

Order Increment : 1 pcs

Qty:

*Need More Quantity? *Request a Bulk Quantity Quotation?

Products specifications

Category	Development Boards, Kits, Programmers - Evaluation and Demonstration Boards and Kits
Mfr	Texas Instruments
Package	Box
Product Status	Obsolete
Type	Reference Design
Function	Spectrum Analyzer
Embedded	Yes
Utilized IC / Part	CC430
Supplied Contents	Board(s) , Cable(s)
Secondary Attributes	Graphical User Interface (GUI)
Base Product Number	SA430
Standard Package	1
RoHS Status	Not applicable
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8473.30.1180
Win Source Part Number	1342200-MSP-SA430-SUB1GHZ
Fake Threat In the Open Market	65 pct.

Description

Texas Instruments MSP-SA430-SUB1GHZ Spectrum Analyzer

The MSP-SA430-SUB1GHZ is an invaluable tool for engineers and hobbyists alike, designed to facilitate the development and troubleshooting of RF systems. Manufactured by Texas Instruments, this spectrum analyzer is tailored for sub-1GHz frequency range applications, making it ideal for a wide array of wireless technologies including, but not limited to, Zigbee, Wi-Fi, ISM, and RFID.

This compact and highly portable device is part of the MSP430 family, known for its low power consumption and high-performance capabilities. The MSP-SA430-SUB1GHZ integrates seamlessly with a PC through a USB interface, allowing for an intuitive user experience with the accompanying software that provides a rich, graphical representation of the RF spectrum.

Key features of the MSP-SA430-SUB1GHZ include:

Frequency range from 300 kHz to 1 GHz, enabling it to cover a broad spectrum of sub-1GHz signals.
Amplitude range from -110 dBm to 0 dBm, offering precise measurement capabilities across a wide signal strength range.
Adjustable RBW (Resolution Bandwidth) from 15 kHz to 240 kHz, which allows for fine-tuning of the device to capture either broad sweeps or detailed, narrowband analysis.
Easy-to-use PC software that provides advanced features such as marker functions for frequency and amplitude, peak detection, and trace averaging for more accurate readings.

The MSP-SA430-SUB1GHZ is not only powerful but also user-friendly, with a straightforward setup that requires minimal calibration. Its lightweight design ensures that it can be transported with ease, making it an excellent choice for fieldwork or on-the-go diagnostics. Whether you're a professional engineer requiring detailed analysis of RF layouts or an electronics enthusiast working on a wireless project, the MSP-SA430-SUB1GHZ spectrum analyzer is the perfect addition to your toolkit.

With Texas Instruments' reputation for quality and reliability, the MSP-SA430-SUB1GHZ stands as a testament to their commitment to providing innovative tools that enhance productivity and drive the development of cutting-edge RF technologies.
