Product Overview: Texas Instruments OPA2316IDRGR

The OPA2316IDRGR is a high-performance, dual operational amplifier (op-amp) designed and manufactured by Texas Instruments (TI). This precision op-amp is part of TI's extensive portfolio of integrated circuits designed for analog signal processing. The OPA2316IDRGR is well-suited for a wide range of applications, including test and measurement equipment, sensor amplification, active filtering, and audio processing.

Key Features

• High Precision: The OPA2316IDRGR offers excellent dc precision with a low offset voltage of 150 µV and a low drift over temperature, ensuring reliable and consistent performance across a range of operating conditions.
• Wide Supply Range: This op-amp operates from a single supply voltage as low as 1.8V up to 5.5V, making it versatile for both single-supply and split-supply applications.
• Low Noise: With a low voltage noise density of 7.5 nV/√Hz at 1 kHz, the OPA2316IDRGR is an excellent choice for applications requiring low noise amplification.
• Rail-to-Rail Output: The device features rail-to-rail output swing, which allows for increased dynamic range in low supply applications.
• Robust Design: The OPA2316IDRGR is specified for operation from -40°C to +125°C, providing reliable performance in harsh environments.

Packaging and Availability

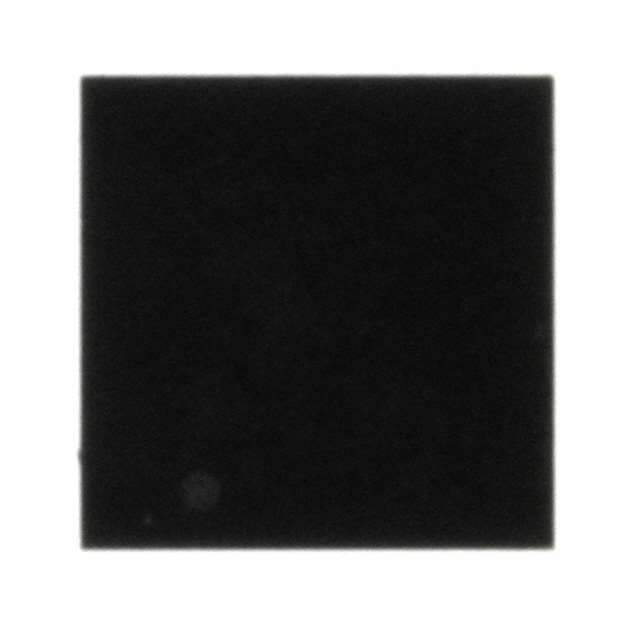

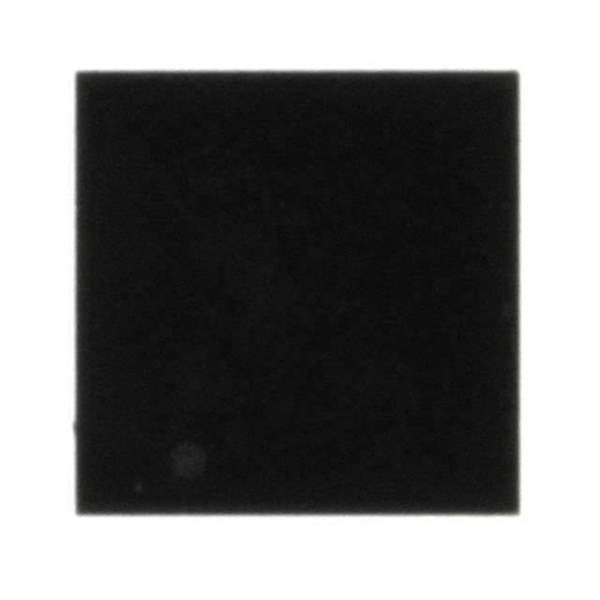

The OPA2316IDRGR is offered in a compact VQFN-10 package, which is optimized for space-constrained applications. The small footprint and low profile of the package make it ideal for portable and miniature electronics. Texas Instruments ensures the availability of this op-amp through their extensive distribution network, making it easy for designers and manufacturers to incorporate the OPA2316IDRGR into their designs.

Applications

The versatility of the OPA2316IDRGR allows it to be used in a variety of applications, including:

• Medical devices such as ECG and EEG amplifiers
• Precision instrumentation
• Data acquisition systems
• Analog input/output modules for PLCs
• Audio equipment and headphone amplifiers

In summary, the Texas Instruments OPA2316IDRGR is a reliable, high-precision dual operational amplifier that delivers excellent performance for a broad array of applications, making it a go-to choice for engineers and designers looking for quality and versatility in their analog signal processing tasks.
