Same model may have multiple batches, images only for reference.

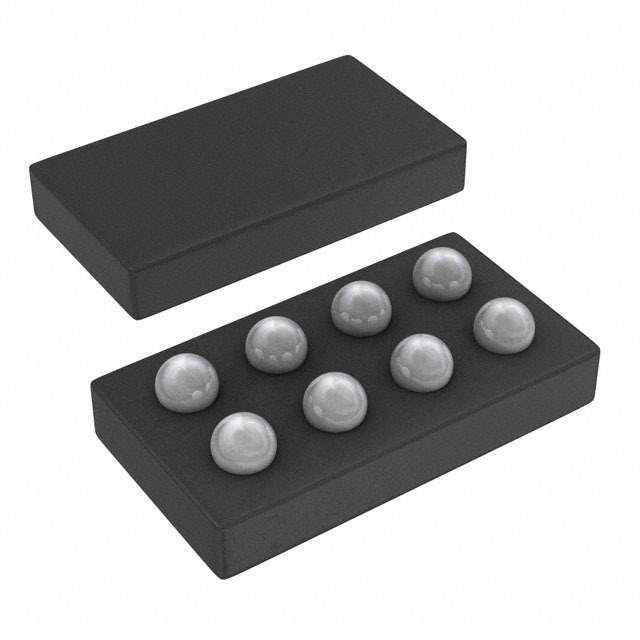

OPA2347YEDR Real Image
Same model may have multiple batches, images only for reference.

OPA2347YEDR

Part No OPA2347YEDR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 350KHZ RRO 8DSBGA
Datasheet
OPA2347YEDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Amplifier Type General Purpose
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 0.17 V/μs
Gain Bandwidth Product (GBP) 350kHz
Current - Input Bias 0.5pA
Voltage - Input Offset 2mV
Operating Supply Current 20μA
Channel Output Current 17mA
Supply Voltage - Operating 2.3 V to 5.5 V, ±1.15 V to 2.75 V
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Case / Package 8-DSBGA (1.8x1.8)
Win Source Part Number 122739-OPA2347YEDR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OPA2347YEDR CAD Model

Description

The OPA2347YEDR is a high-performance, dual operational amplifier from Texas Instruments, a renowned global semiconductor company.

  • Supply Voltage: 2.7 V to 5.5 V.
  • Quiescent Current: 17µA.
  • Output Swing: Rail-to-rail input/output.
  • CMRR: 80 dB.
  • PSRR: 95 dB.
  • Package: 8-pin SOIC package.
  • Temperature Range: -40°C to 125°C.
