The PCM9211PT from Texas Instruments is a highly integrated digital audio interface receiver and transmitter. It is designed to provide a comprehensive solution for professional and consumer audio applications, offering a flexible array of features to handle a wide range of digital audio signals.

Key Features

• Advanced Audio Data Handling: The PCM9211PT is capable of processing audio data at 24-bit resolution and supports sample rates up to 216 kHz, ensuring high-fidelity audio capture and playback.
• Integrated Digital Audio Interface: It includes a digital audio interface receiver (DIR) and transmitter that support AES3, S/PDIF, IEC60958, EIAJ CP1201, and IEC61937 formats, making it versatile for various digital audio protocols.
• On-chip Audio Processing: The device features an on-chip digital audio processor that can perform tasks such as sample rate conversion, audio format translation, and jitter reduction, enhancing audio performance and flexibility.
• Multiple Input/Output Options: PCM9211PT offers a range of I/O options including optical, coaxial, and UART interfaces, allowing for easy integration into different system designs.
• Programmable Functionality: Users can program the PCM9211PT through an I2C or SPI interface, enabling customization for specific application requirements.

Applications

Due to its versatility and high-quality audio processing capabilities, the PCM9211PT is suitable for a variety of applications, such as:

• Audio/Video Receivers
• Professional Audio Recording and Mixing Consoles
• Home Theater Systems
• Digital Audio Workstations
• Automotive Audio Systems

Technical Specifications

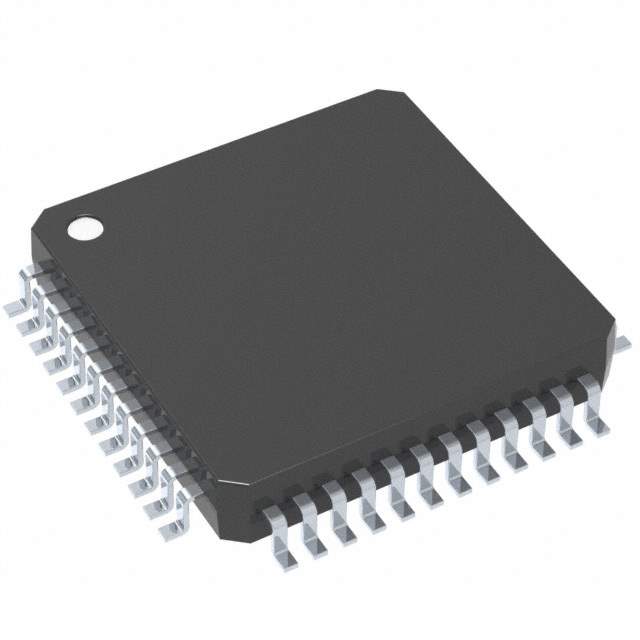

The PCM9211PT operates over a temperature range of -40°C to 85°C and comes in a 48-pin LQFP package. It requires a 3.3V power supply for digital circuits and can also operate at 5V for analog circuits, providing design flexibility.

With its robust feature set and integration capabilities, the PCM9211PT stands out as a comprehensive solution for digital audio interfacing, ensuring excellent audio quality and system reliability for manufacturers and audio professionals.
