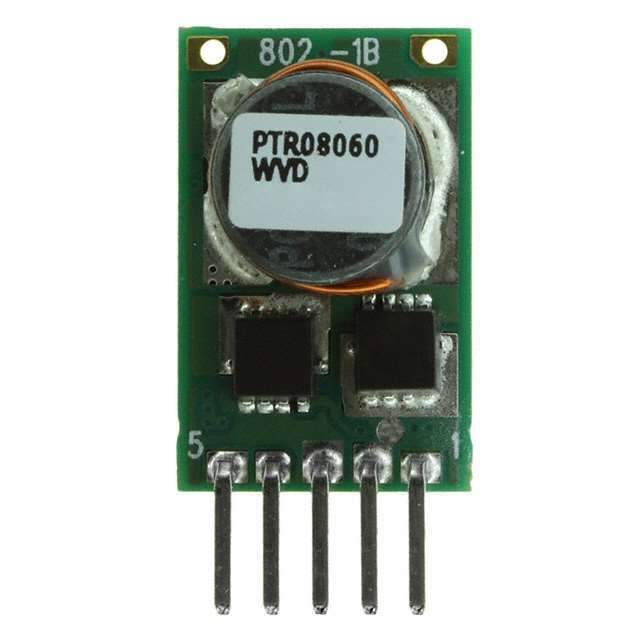

PTR08060WVD Texas Instruments PTR08060WVD Real Image PTR08060WVD label picture PTR08060WVD real image 2
Same model may have multiple batches, images only for reference.
PTR08060WVD Texas Instruments PTR08060WVD Real Image PTR08060WVD label picture PTR08060WVD real image 2
PTR08060WVD Texas Instruments PTR08060WVD Real Image PTR08060WVD label picture PTR08060WVD real image 2
Same model may have multiple batches, images only for reference.

PTR08060WVD

Part No PTR08060WVD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 4.5-14V 6A 5SIP VERT T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Standard Package 80
Category Power Supplies - Board Mount
Family DC DC Converters
Series PTR08060W
Packaging Tube
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.6 ~ 5.5 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features With UVLO
Mounting Style Through Hole
Package 5-SIP Module
Size / Dimension 0.41" L x 0.37" W x 0.65" H (10.4mm x 9.4mm x 16.5mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 33W
Catalog PTR08060W
Win Source Part Number 085955-PTR08060WVD
Family Name PTR08060W
Introduction Date August 01, 2007
ECCN EAR99
Country of Origin Mexico, Thailand
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Power Management, Test & Measurement
Ultra Librarian 3D Model Ultra Librarian PTR08060WVD CAD Model

Description

The PTR08060WVD is a high-quality, high-performance non-isolated power module from Texas Instruments.

  • Rating: 10-A rated module
  • Output Voltage: Adjustable output voltage range of 0.6 V to 5.5 V
  • Input Voltage: Wide input voltage range of 4.5 V to 14 V
  • Efficiency: High efficiency, up to 96%
  • Technology: Employs the latest advancements in power management technology
  • Protection: Over-current and over-temperature protection
  • Package: Compact, surface-mount package
  • Feature: Auto-Track sequencing feature
