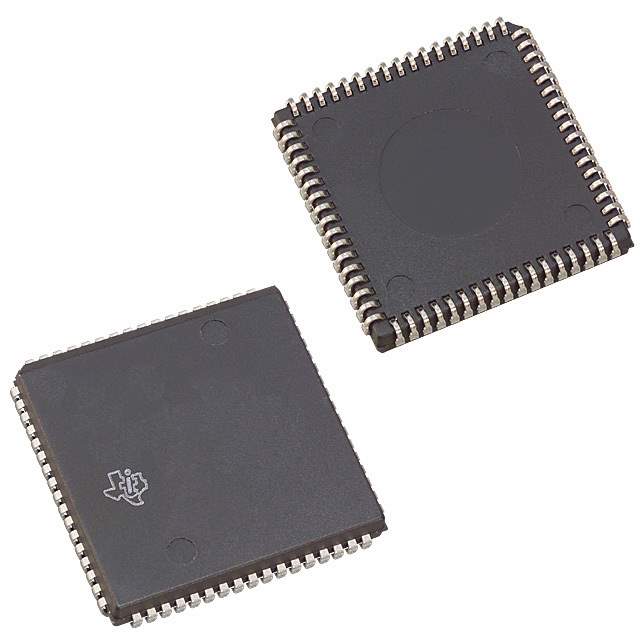

SN74ACT7801-15FN

Part No SN74ACT7801-15FN
Manufacturer Texas Instruments
Catalog Logic - FIFOs Memory
Description IC CLOCKED FIFO 1024X18 68-PLCC / FIFO Mem Sync Dual Depth/Width Uni-Dir 1K x 18 68-Pin PLCC Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Texas Instruments
Series 74ACT
Packaging Tube
Part Status Obsolete(EOL)
Memory Size 18K (1K x 18)
Function Synchronous
Data Rate 40MHz
Access Time 15ns
Operating Supply Voltage 4.5 V ~ 5.5 V
Maximum Supply Current 230mA
Bus Directional Uni-Directional
Expansion Type Depth, Width
Programmable Flags Support Yes
Retransmit Capability No
FWFT Support No
Operating Temperature Range 0°C ~ 70°C
Mounting SMD
Package 68-LCC (J-Lead)
Manufacturer Package 68-PLCC (24.23x24.23)
Win Source Part Number 794886-SN74ACT7801-15FN
Popularity Medium
Supply and Demand Status Limited
Family Name SN74ACT7801
Introduction Date April 01, 1990
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Win Source Part Number 72225LB15JG; 72225LB15J8; 72225LB35GB; 72225LB15J8G;

Description

The SN74ACT7801-15FN is a high-performance integrated circuit from Texas Instruments, designed for efficient and reliable operation in a wide array of digital applications. This versatile IC is a key component in the realm of digital signal processing, logic circuitry, and various timing solutions.

Key Features

  • Logic Type: This device falls under the category of register logic, which is essential for storage, transfer, and manipulation of data within digital circuits.
  • Number of Bits: The SN74ACT7801-15FN can handle a 256 x 18-bit FIFO (First In, First Out) memory, which is ideal for buffering and queueing data in applications requiring synchronous data transfers.
  • Frequency: It operates at a maximum clock frequency of 15MHz, ensuring rapid data processing and minimal delay in time-sensitive operations.
  • Operating Temperature: The device is designed to function reliably over an industrial temperature range of -40°C to +85°C, making it suitable for use in harsh environmental conditions.
  • Package: Encased in a 64-LCC (Leadless Chip Carrier) package, the SN74ACT7801-15FN is compact and suitable for space-constrained applications.
  • Supply Voltage: It operates on a 5V supply voltage, which is compatible with TTL (Transistor-Transistor Logic) levels, thus allowing for easy integration with existing digital systems.

Applications

The SN74ACT7801-15FN is adept at handling high-speed data streams and is commonly employed in telecommunications, computing, and data acquisition systems. Its robust FIFO architecture makes it an excellent choice for network routers, switches, and buffer memory in various processing units.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and the SN74ACT7801-15FN is no exception. Manufactured with precision and subjected to rigorous testing, this IC meets high standards of performance and durability. Whether used in commercial or industrial applications, the SN74ACT7801-15FN by Texas Instruments stands as a testament to quality engineering and reliability.
