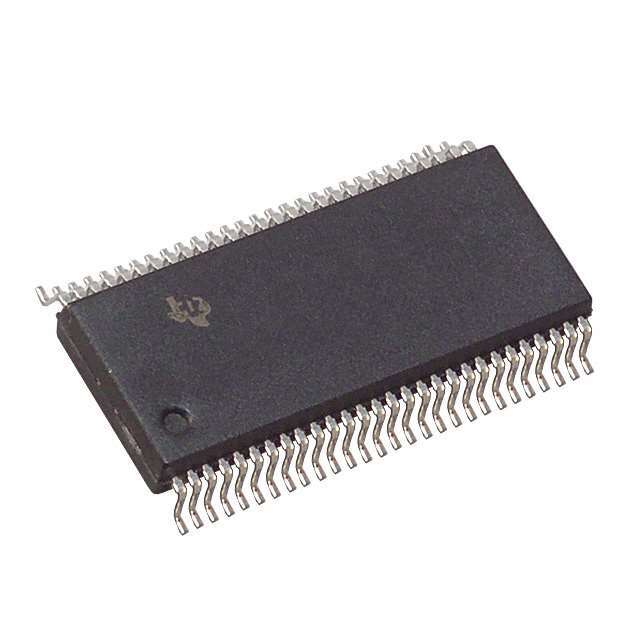

Product Overview: SN74ALVCH16270DL

The SN74ALVCH16270DL, manufactured by Texas Instruments, is a high-performance integrated circuit designed to meet the needs of advanced digital systems. This device is part of the ALVCH series, which is known for its low-voltage operation and high-speed interface technology. The SN74ALVCH16270DL is particularly suitable for applications requiring a 16-bit edge-triggered D-type flip-flop with 3-state outputs.

Key Features

• Technology: Advanced Low-Voltage CMOS (ALVCH)
• Logic Type: 16-bit edge-triggered D-type flip-flop
• Output Type: 3-state, which allows for bus-oriented applications
• Operating Voltage: 2.3V to 3.6V, enabling low-voltage operation for power efficiency
• Data Rate: Capable of handling high-speed data transfer
• Package: Desoldeable 56-pin SSOP (Shrink Small Outline Package)
• Temperature Range: Specified from -40°C to 85°C, suitable for industrial applications

Applications

The SN74ALVCH16270DL is versatile and can be used in a variety of digital applications, including:

• Memory data storage and retrieval
• Communication systems
• Computers and computer peripherals
• Data processing equipment
• High-speed signal gating

Performance Benefits

With its low-voltage operation, the SN74ALVCH16270DL ensures reduced power consumption, which is critical for battery-powered devices and eco-friendly designs. The high-speed data transfer capability makes it an excellent choice for systems that require fast and reliable data processing. Additionally, the 3-state outputs allow for direct connection to a bus, facilitating easier and more flexible circuit design.

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN74ALVCH16270DL is no exception. It is designed and manufactured to meet the highest standards of performance and reliability, ensuring that it can withstand the demands of even the most challenging applications.
