The SN74ALVCH162831GR from Texas Instruments is a high-performance, 18-bit universal bus driver designed to cater to the needs of high-speed memory drivers, buffer drivers, and bus-oriented receivers and transmitters. This integrated circuit is part of the advanced low-voltage CMOS (ALVC) family, which is known for its low-voltage operation and high-speed interface technology.

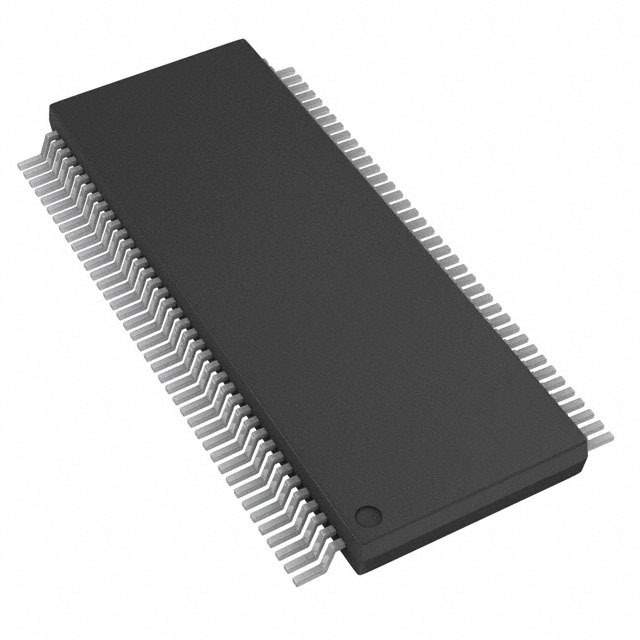

With its 56-pin thin shrink small-outline package (TSSOP), the SN74ALVCH162831GR offers a compact footprint while delivering robust performance. This device operates at a nominal voltage of 2.5V or 3.3V, making it compatible with low-voltage systems and ensuring reduced power consumption, an essential feature for energy-sensitive applications.

The SN74ALVCH162831GR is designed with a bus-hold feature on its data inputs, which eliminates the need for external pull-up or pull-down resistors and helps maintain last active or inactive states. This feature is particularly useful in multiplexed bus applications where the lines cannot be left floating. Furthermore, the device offers a high drive capability, with 24-mA balanced output drivers that provide reduced switching noise and improved signal integrity.

The device boasts a wide operating temperature range, making it suitable for industrial applications where reliability under varying environmental conditions is critical. In addition, the SN74ALVCH162831GR supports live insertion and withdrawal, minimizing the risk of glitches and disturbances on the bus lines during hot-swapping operations.

Key features include:

• Member of the Texas Instruments Widebus™ Family
• Operates From 2.5 V to 3.3 V
• High Signaling Rates (up to 380 Mbps)
• Low Power Consumption
• Bus Hold on Data Inputs Eliminates the Need for External Pull-up/Pull-down Resistors
• Live Insertion and Withdrawal Support
• 56-Pin TSSOP Package for Space-Saving Applications
• Industrial Temperature Range: -40°C to 85°C

The SN74ALVCH162831GR is a perfect choice for designers looking for a reliable universal bus driver that delivers high-speed performance while maintaining power efficiency. Its compatibility with various bus voltages and the inclusion of bus-hold functionality make it highly versatile for a range of applications in computing, telecommunications, and networking equipment.
